633-078 Series
Manufacturer: EDAC Inc.
Beta
⌘K

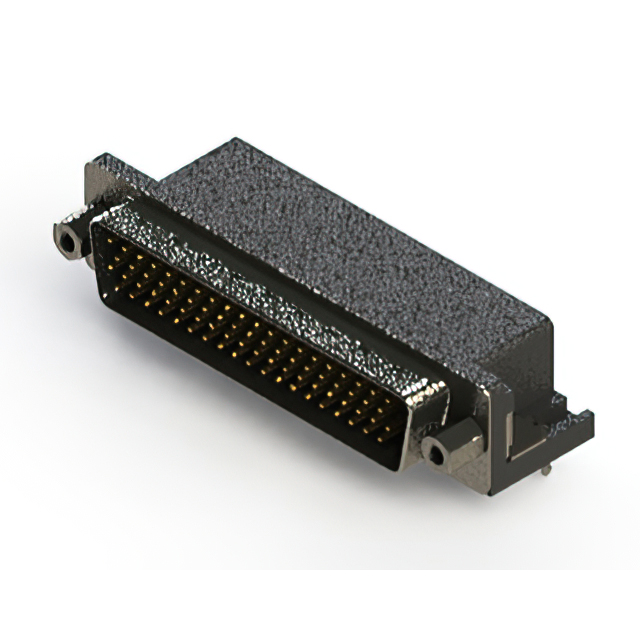

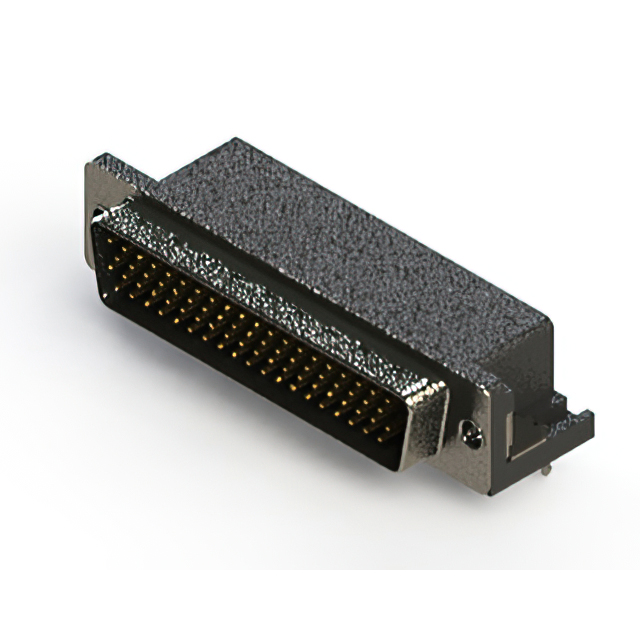

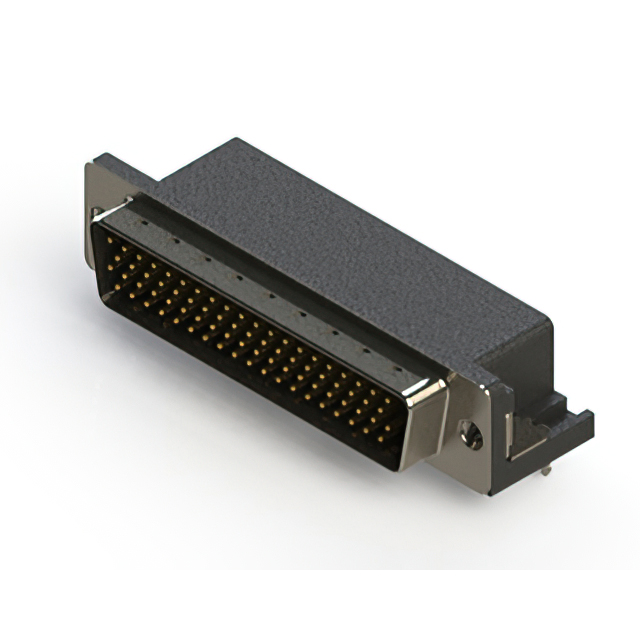

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Flange Feature | Contact Finish Thickness | Current Rating (Amps) | Shell Material, Finish | Number of Positions | Connector Style | Contact Type | Material Flammability Rating | Backset Spacing | Backset Spacing | Features | Termination | Contact Finish | Connector Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Housing/Shell (Unthreaded) | Flash | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Housing/Shell (M3) | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Housing/Shell | Flash | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 4-40 | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Housing/Shell (Unthreaded) | Flash | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Housing/Shell (M3) | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | 4-40 | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Housing/Shell (Unthreaded) | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Housing/Shell | Flash | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 4-40 | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Housing/Shell (Unthreaded) | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 4-40 | 3 A | Nickel Plated Steel | 78 | D-Sub High Density | Signal | UL94 V-0 | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Gold | Plug Male Pins | Board Edge Right Angle Through Hole | 30 Áin | 0.76 Ám |
