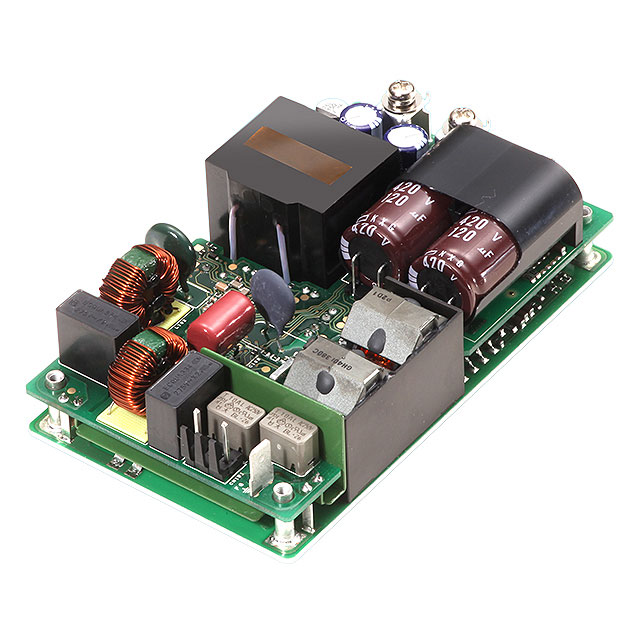

GHA300F Series

Switching Power Supplies

Manufacturer: Cosel USA, Inc.

Catalog

Switching Power Supplies

Catalog

Switching Power Supplies

Part	Minimum Load Required	Efficiency	Type	Number of Outputs	Current - Output 1	Applications	Power (Watts)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Features	Voltage - Isolation
Cosel USA, Inc. GHA300F-12-J1		90 %	Open Frame	1	8.4 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	12 V	Adjustable Output PFC Universal Input	4000 V
Cosel USA, Inc. GHA300F-48-J1		91 %	Open Frame	1	2.1 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	48 V	Adjustable Output PFC Universal Input	4000 V
Cosel USA, Inc. GHA300F-12-T3		90 %	Open Frame	1	8.4 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	12 V	Adjustable Output PFC Universal Input	4000 V
Cosel USA, Inc. GHA300F-24-R3		91 %	Open Frame	1	4.2 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	24 V	Adjustable Output DC Input Capable PFC Remote On/Off Standby Output Universal Input	4000 V
Cosel USA, Inc. GHA300F-48-R3		91 %	Open Frame	1	2.1 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	48 V	Adjustable Output DC Input Capable PFC Remote On/Off Standby Output Universal Input	4000 V
Cosel USA, Inc. GHA300F-24-J1		91 %	Open Frame	1	4.2 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	24 V	Adjustable Output PFC Universal Input	4000 V
Cosel USA, Inc. GHA300F-12		90 %	Open Frame	1	8.4 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	12 V	Adjustable Output PFC Universal Input	4000 V
Cosel USA, Inc. GHA300F-12-R3		90 %	Open Frame	1	8.4 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	12 V	Adjustable Output DC Input Capable PFC Remote On/Off Standby Output Universal Input	4000 V
Cosel USA, Inc. GHA300F-48-T3		91 %	Open Frame	1	2.1 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	48 V	Adjustable Output PFC Universal Input	4000 V
Cosel USA, Inc. GHA300F-24		91 %	Open Frame	1	4.2 A	ITE (Commercial) Medical	100 W 300 W	CE cURus DEMKO	80 ¯C	-20 °C	Chassis Mount	264 VAC	90 VAC	35 mm	127 mm	5 "	3 "	1.38 in	76.2 mm	24 V	Adjustable Output PFC Universal Input	4000 V
