277

277 Series

FUSE 125V FM04A MIL PICO I FUSE .500A

Manufacturer: LITTELFUSE

Catalog

FUSE 125V FM04A MIL PICO I FUSE .500A

Catalog

FUSE 125V FM04A MIL PICO I FUSE .500A

Part	Mounting Type	Response Time	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Voltage Rating - AC	Package / Case	Fuse Type	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [z]
LITTELFUSE 0277.375V	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	375 mA
LITTELFUSE 0277015.V	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	32 V	32 V	Axial	Board Mount (Cartridge Style Excluded)	15 A
LITTELFUSE 0277.125M	Through Hole	Fast Blow			0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	0.125 Amps	7.14 mm	0.281 in

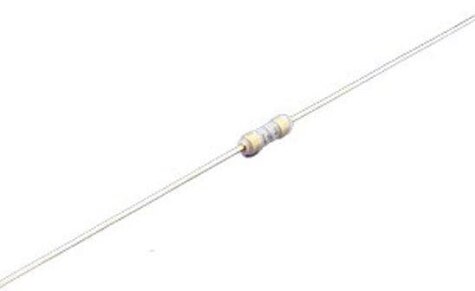

LITTELFUSE 0277001.V	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	1 A
LITTELFUSE 0277010.M	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	10 A
LITTELFUSE 0277001.NRT1	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	1 A
LITTELFUSE 0277.500NRT1	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	0.5 A
LITTELFUSE 0277007.NRT1	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	7 A
LITTELFUSE 0277.500M	Through Hole	Fast Blow	0.28 in	7.11 mm	0.093 "	2.36 mm	125 VDC	125 V	Axial	Board Mount (Cartridge Style Excluded)	0.5 A
