IMSA-13103B Series
Manufacturer: IRISO USA Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
HEADER SMT RA 20POS KEY-B
| Part | Number of Rows | Insulation Height | Contact Finish Thickness - Mating | Contact Finish - Mating | Connector Type | Insulation Color | Shrouding | Operating Temperature (Max) | Operating Temperature (Min) | Pitch - Mating | Termination | Contact Finish - Post | Current Rating | Style | Insulation Material | Contact Type | Voltage Rating | Features | Number of Positions Loaded | Contact Material | Fastening Type | Mounting Type | Number of Positions | Contact Shape | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

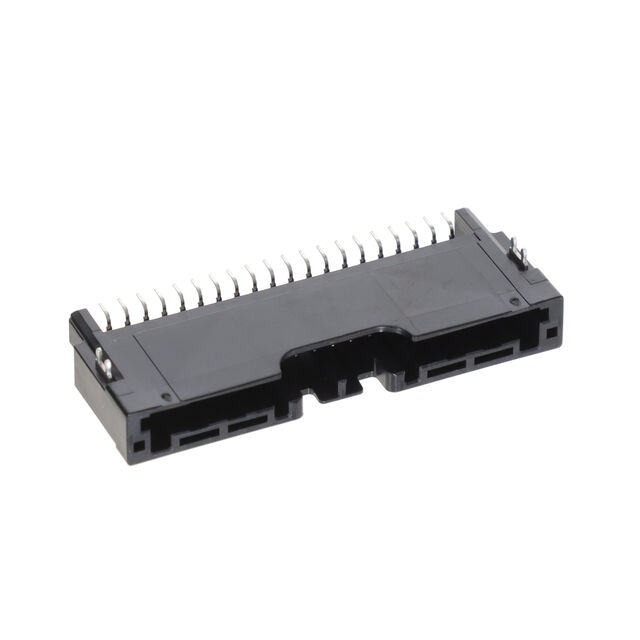

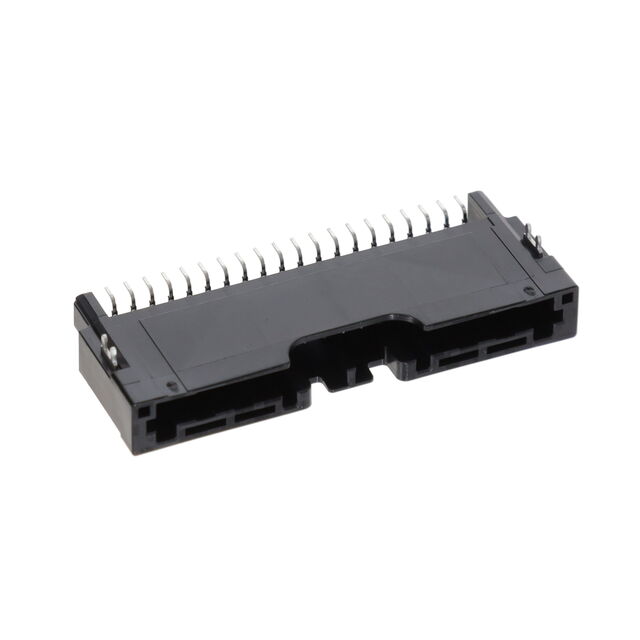

 IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 20 | Square | 39.4 µin |

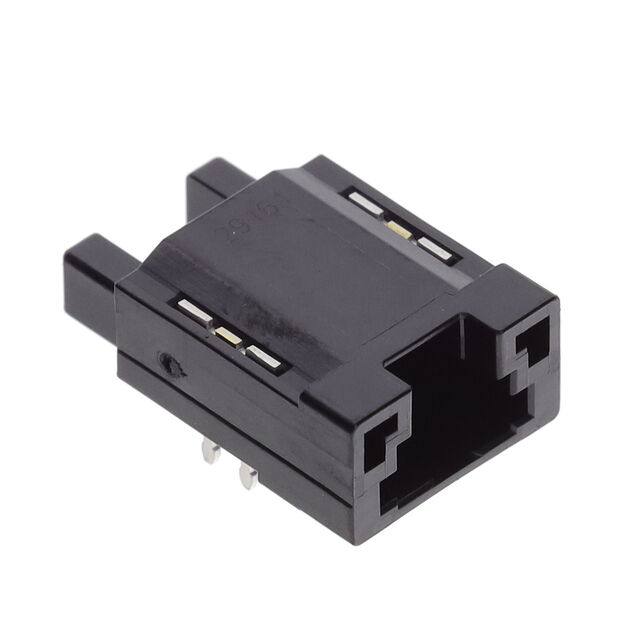

 IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 2 | Square | 39.4 µin |

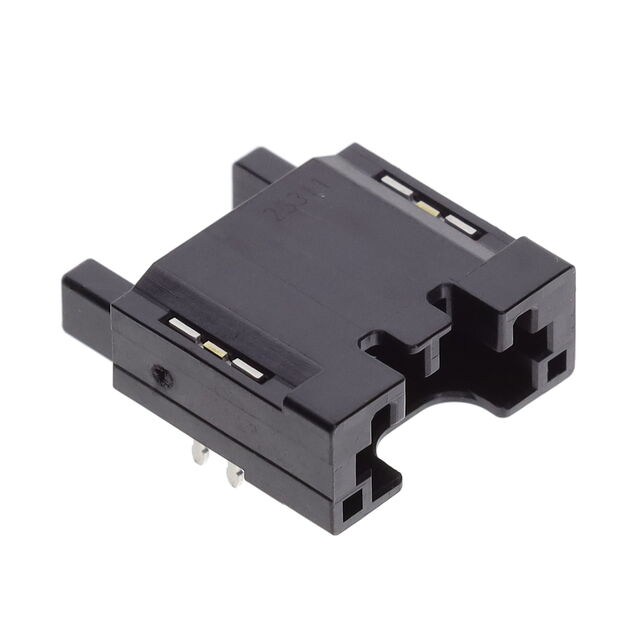

 IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 4 | Square | 39.4 µin |
 IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 4 | Square | 39.4 µin |

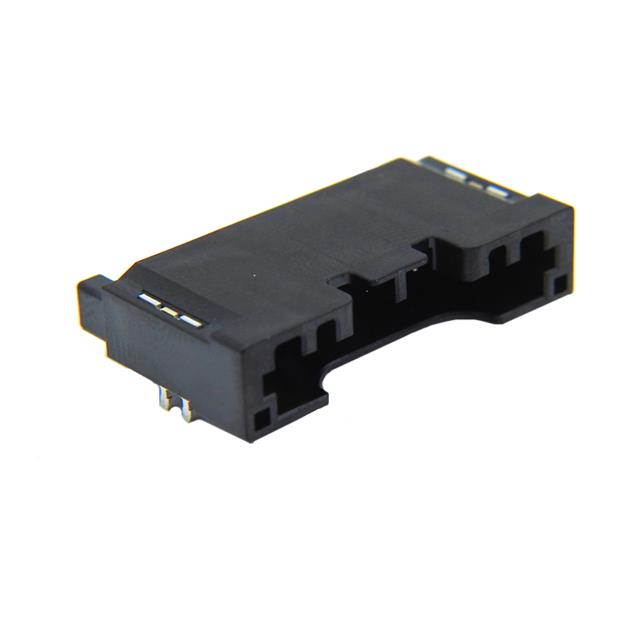

 IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 10 | Square | 39.4 µin |
IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 2 | Square | 39.4 µin |
IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 20 | Square | 39.4 µin |
 IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 20 | Square | 39.4 µin |
IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 2 | Square | 39.4 µin |

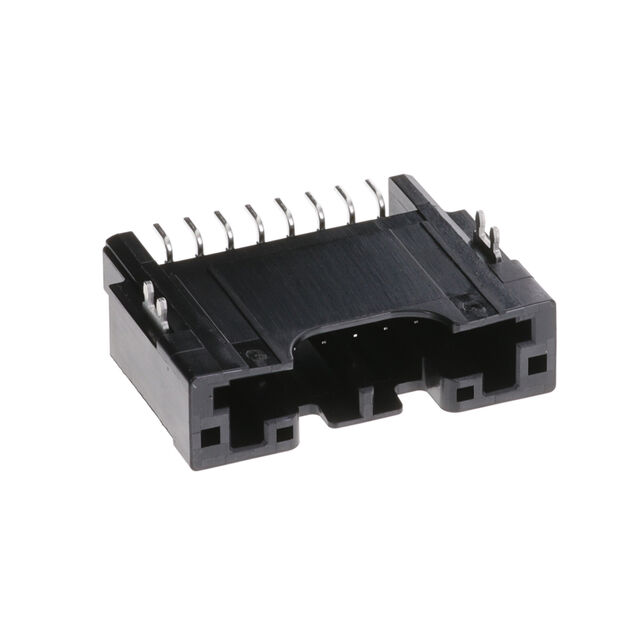

IRISO USA Inc. | 1 | 0.256 in | 39.4 µin | Tin | Plug | Black | Shrouded - 4 Wall | 125 °C | -40 °C | 0.079 in | Solder | Tin | 3 A | Board Cable/Wire | Polyphenylene Sulfide (PPS) | Male Pin | 50 V | Solder Retention | All | Copper Alloy | Latch Holder | Right Angle Surface Mount | 8 | Square | 39.4 µin |
