NPTC222 Series

Catalog

CONN HDR 44POS 0.1 TIN SMD

Part	Contact Shape	Contact Material	Insulation Material	Number of Positions Loaded	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions	Voltage Rating	Contact Type	Connector Type	Contact Finish - Post	Current Rating (Amps)	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height	Insulation Color	Termination	Mounting Type	Features

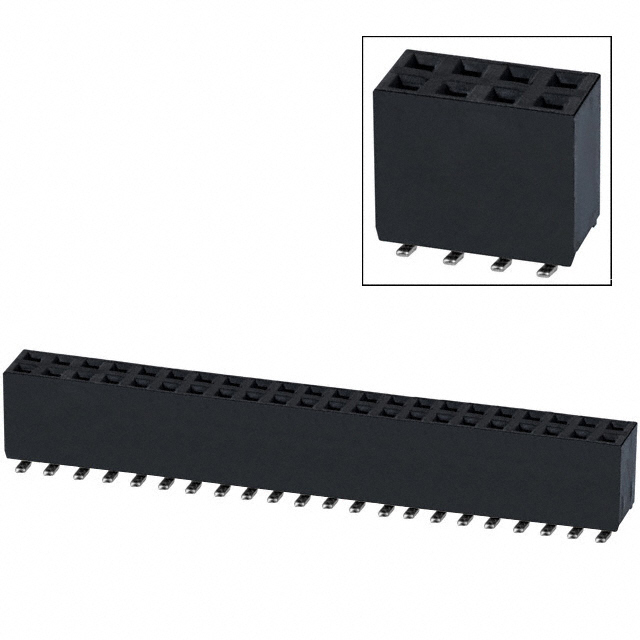

Sullins Connector Solutions NPTC222KFMS-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	All	2	0.1 in	2.54 mm	0.1 "	2.54 mm	UL94 V-0	44	250 V	Female Socket	Header	Tin	3 A	Push-Pull	125 °C	-40 C	0.299 "	7.6 mm	Black	Solder	Surface Mount
Sullins Connector Solutions NPTC222KFMP-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	All	2	0.1 in	2.54 mm	0.1 "	2.54 mm	UL94 V-0	44	250 V	Female Socket	Header	Tin	3 A	Push-Pull	125 °C	-40 C	0.299 "	7.6 mm	Black	Solder	Surface Mount	Board Guide
