21183 Series

Catalog

ANTENNAS 4G WORLD BAND, META SPAN, PCB, W/MHF4L

Part	Features	Antenna Type	Applications	Gain	Number of Bands	Frequency Range [Min]	Frequency Range [Max]	Frequency Group	Height (Max)	Height (Max) [Max]	VSWR	RF Family/Standard	Termination	Frequency (Center/Band)	Mounting Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Features

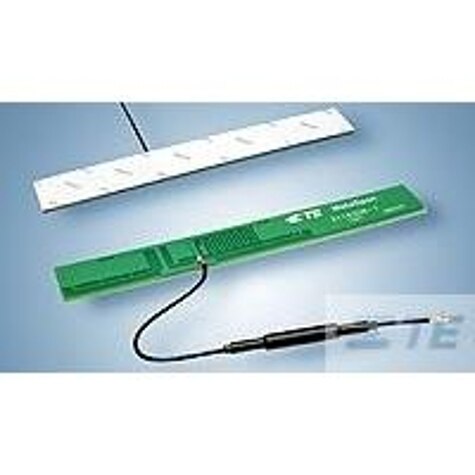

TE Connectivity Raychem Cable Protection 2118308-2	Cable - 120mm	PCB Trace	CDMA GSM ISM LTE UMTS Zigbee™	3.9 dBi	8	1.71 GHz 1.85 GHz 2.3 GHz 698 MHz 824 MHz 868 MHz 880 MHz 1920 MHz	1.88 GHz 1.99 GHz 2.17 GHz 2.7 GHz 870 MHz 894 MHz 960 MHz	Wide Band	1.32 mm	0.052 in	3	802.15.4 Cellular General ISM	MHF4L	1.795 GHz 1.92 GHz 2.045 GHz 2.5 GHz 829 MHz 859 MHz 869 MHz 920 MHz	Adhesive
TE Connectivity Raychem Cable Protection 2118309-4	Cable - 120mm	PCB Trace	802.11a/b/g/n/ac/ad Bluetooth Wi-Fi WLAN Zigbee™	3.7 dBi	2	2.4 GHz 4.9 GHz	2.4835 GHz 5.875 GHz				2	802.15.4 Bluetooth WiFi	MHF4L	2.44175 GHz 5.3875 GHz	Adhesive	4 GHz	2 GHz	3 GHz	1 mm	0.039 in
TE Connectivity Raychem Cable Protection 2118308-8	Cable	PCB Trace	CDMA GSM ISM LTE UMTS Zigbee™	3.9 dBi	8	1.71 GHz 1.85 GHz 2.3 GHz 698 MHz 824 MHz 868 MHz 880 MHz 1920 MHz	1.88 GHz 1.99 GHz 2.17 GHz 2.7 GHz 870 MHz 894 MHz 960 MHz	Wide Band	1.32 mm	0.052 in	3	802.15.4 Cellular General ISM	MHF	1.795 GHz 1.92 GHz 2.045 GHz 2.5 GHz 829 MHz 859 MHz 869 MHz 920 MHz	Adhesive						290 mm
