628W2W Series
Manufacturer: EDAC Inc.
Beta
⌘K

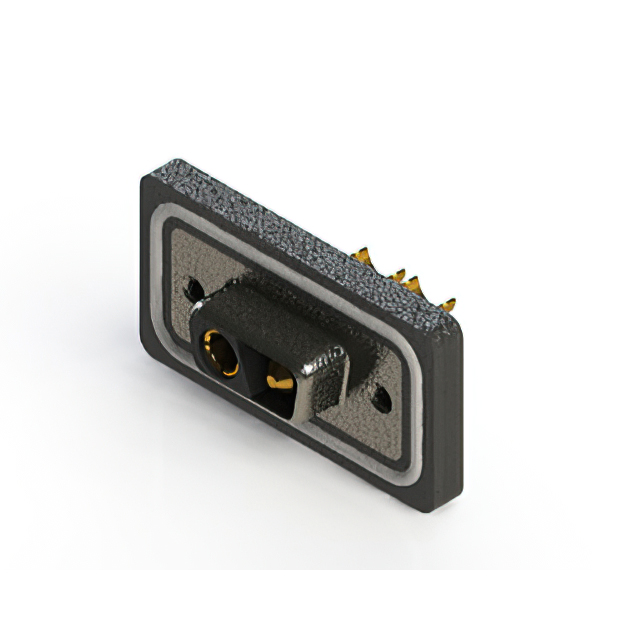

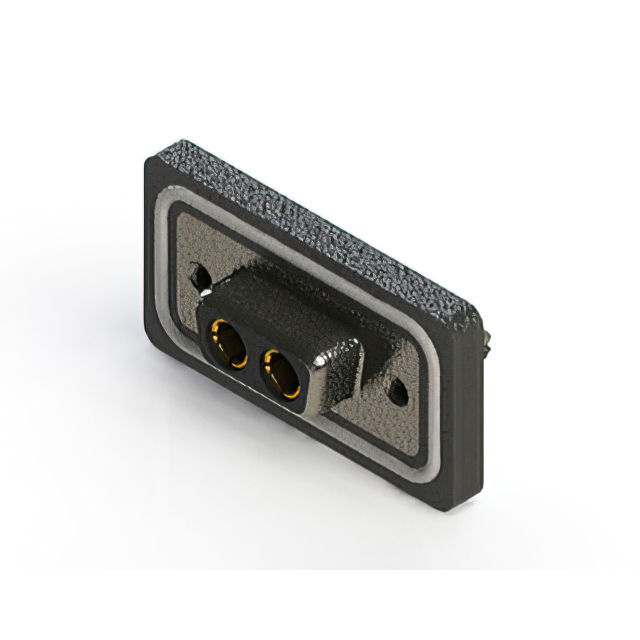

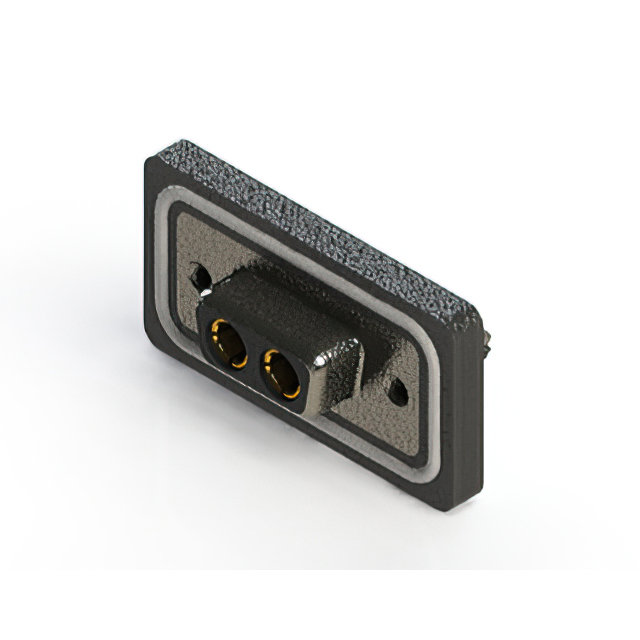

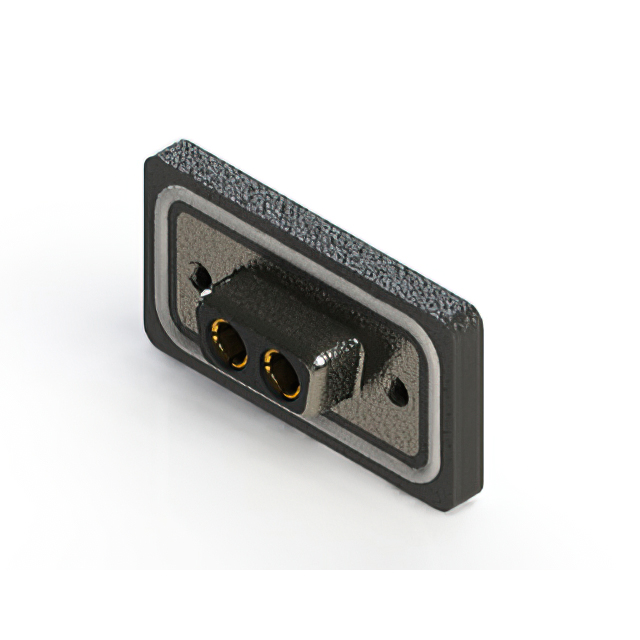

CONN D-SUB RCPT 2P PNL MNT
| Part | Contact Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Ingress Protection | Connector Type | Contact Finish | Current Rating (Amps) | Flange Feature | Shell Material, Finish | Mounting Type | Connector Style | Material Flammability Rating | Number of Rows | Features | Shell Size, Connector Layout | Number of Positions | Termination | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | 5 µin | 0.127 µm | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 10 A | Housing/Shell (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | |||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | 15 µin | 0.38 µm | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 40 A | Housing/Shell (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Solder | ||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | 15 µin | 0.38 µm | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 40 A | Board Side (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Board Lock Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Solder | ||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 40 A | Housing/Shell (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | |||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 40 A | Housing/Shell (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Flash | ||||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | 15 µin | 0.38 µm | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 30 A | Board Side (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Board Lock Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Solder | ||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 40 A | Housing/Shell (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Solder | Flash | |||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 30 A | Housing/Shell | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Solder | 4-40 | |
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | 5 µin | 0.127 µm | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 40 A | Housing/Shell (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | |||
 EDAC Inc. | Copper Alloy | 125 VDC | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Power | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | 10 A | Board Side (M3) | Nickel Plated Steel | Panel Mount | Combo D-Sub | UL94 V-0 | 1 | Board Lock Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Solder | Flash |
