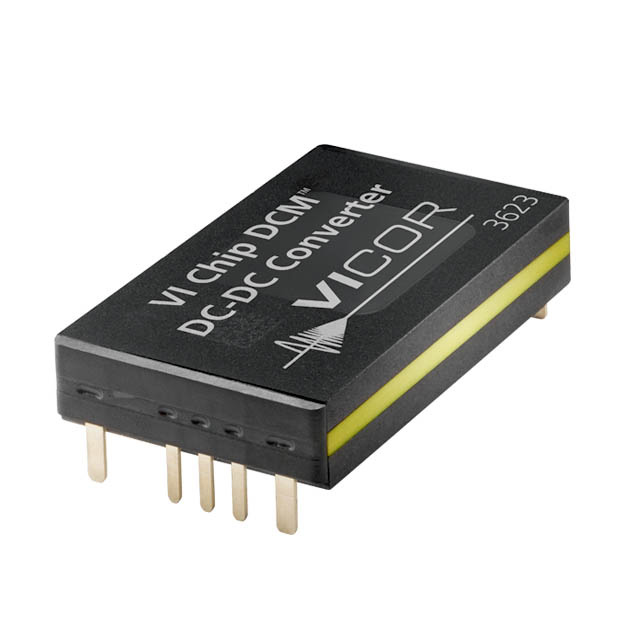

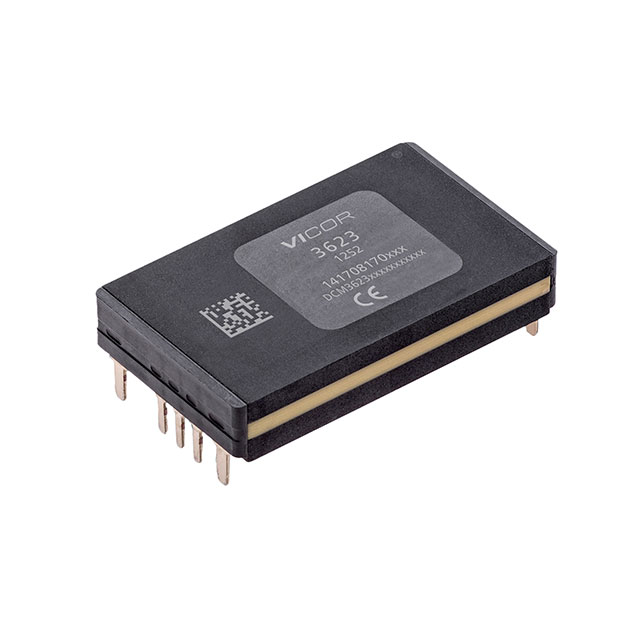

DCM24 Series

Catalog

DC DC CONVERTER 12V 320W

Part	Current - Output (Max) [Max]	Package / Case	Voltage - Isolation	Voltage - Input (Max) [Max]	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Type	Number of Outputs	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Efficiency
Vicor Corporation DCM24AP120M320A50	26.67 A	9-DIP Module	2250 VDC	36 V	Through Hole	OCP OTP OVP SCP UVLO	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	12 V	Isolated Module	1	18 V	320 W	-55 C	125 °C	ITE (Commercial)
Vicor Corporation DCM24AP480T320A50	6.67 A	9-DIP Module	2250 VDC	36 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	48 V	Isolated Module	1	18 V	320 W	-40 C	125 °C	ITE (Commercial)	92.5 %
Vicor Corporation DCM24AP050T180A50	36 A	9-DIP Module	2250 VDC	36 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	5 V	Isolated Module	1	18 V	180 W	-40 C	125 °C	ITE (Commercial)	91.9 %
Vicor Corporation DCM24AP150T320A50	21.4 A	9-DIP Module	2250 VDC	36 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	15 V	Isolated Module	1	18 V	320 W	-40 C	125 °C	ITE (Commercial)	92.9 %
