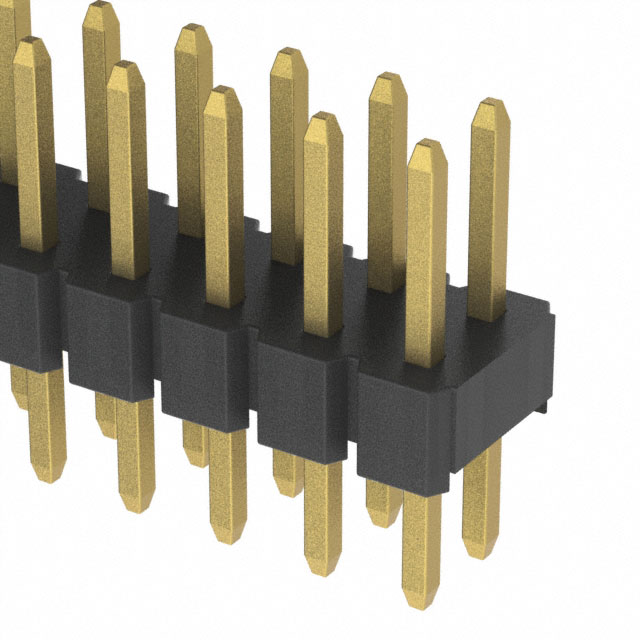

2PH2 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 2POS 2MM

Part	Contact Finish Thickness - Post	Shrouding	Mounting Type	Contact Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions	Overall Contact Length	Overall Contact Length	Voltage Rating	Contact Length - Post [custom]	Contact Length - Post	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Mating	Number of Positions Loaded	Contact Material	Termination	Contact Finish - Post	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech 2PH2-02-UA	Flash	Unshrouded	Through Hole	Male Pin	Black	0.154 in	3.91 mm	Flash	2 mm	0.079 in	UL94 V-0	2 mm	0.079 in	Header	2	0.343 in	8.7 mm	250 VAC	0.11 in	2.79 mm	2	0.079 "	2 mm	Polybutylene Terephthalate (PBT)	Gold	All	Brass	Solder	Gold	Square	Push-Pull	-40 C	105 ░C
Adam Tech 2PH2-08-UA		Unshrouded	Through Hole	Male Pin	Black	0.154 in	3.91 mm	Flash	2 mm	0.079 in	UL94 V-0	2 mm	0.079 in	Header	8	0.343 in	8.7 mm	250 VAC	0.11 in	2.79 mm	2	0.079 "	2 mm	Polybutylene Terephthalate (PBT)	Gold	All	Brass	Solder	Gold	Square	Push-Pull	-40 C	105 ░C
Adam Tech 2PH2-16-UA	Flash	Unshrouded	Through Hole	Male Pin	Black	0.154 in	3.91 mm	Flash	2 mm	0.079 in	UL94 V-0	2 mm	0.079 in	Header	16	0.343 in	8.7 mm	250 VAC	0.11 in	2.79 mm	2	0.079 "	2 mm	Polybutylene Terephthalate (PBT)	Gold	All	Brass	Solder	Gold	Square	Push-Pull	-40 C	105 ░C
Adam Tech 2PH2-14-UA		Unshrouded	Through Hole	Male Pin	Black	0.154 in	3.91 mm	Flash	2 mm	0.079 in	UL94 V-0	2 mm	0.079 in	Header	14	0.343 in	8.7 mm	250 VAC	0.11 in	2.79 mm	2	0.079 "	2 mm	Polybutylene Terephthalate (PBT)	Gold	All	Brass	Solder	Gold	Square	Push-Pull	-40 C	105 ░C
