EUB0424 Series

Catalog

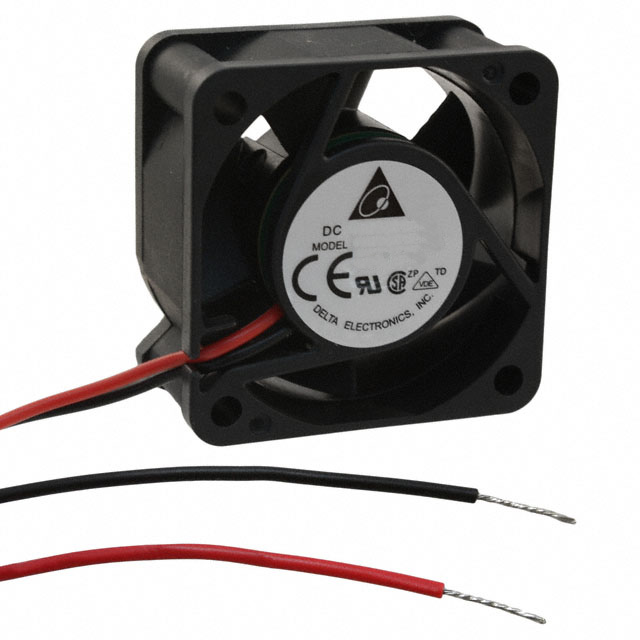

FAN AXIAL 40X20MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	RPM	Approval Agency	Noise	Bearing Type	Weight	Weight	Air Flow	Air Flow	Width [y]	Termination	Static Pressure	Static Pressure	Power (Watts)	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated
Delta Electronics EUB0424MD	40 °C 50000 Hrs	Plastic	Plastic	27.6 VDC	14	50 mA	6300 RPM	CE CSA UL VDE	24 dB	Superflo	33.11 g	0.073 lb	0.202 mł/min	7.2 CFM	20 mm	2 Wire Leads	54.3 Pa	0.218 in H2O	1.2 W	Tubeaxial	-10 °C	60 °C	40 mm	40 mm	24 VDC
Delta Electronics EUB0424HD	40 °C 50000 Hrs	Plastic	Plastic	27.6 VDC	14	60 mA	7600 RPM	CE CSA UL VDE	28.5 dB	Superflo	33.11 g	0.073 lb	0.238 mł/min	8.5 CFM	20 mm	2 Wire Leads	75.5 Pa	0.303 in H2O	1.44 W	Tubeaxial	-10 °C	60 °C	40 mm	40 mm	24 VDC
