276887 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

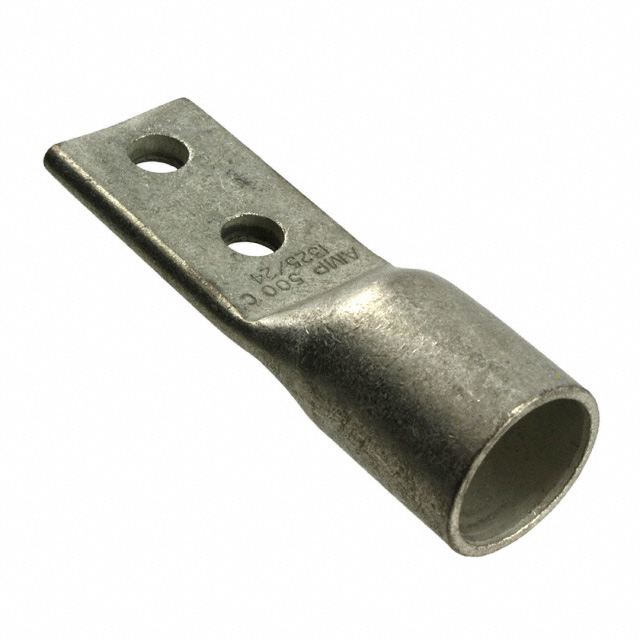

CONN TERM RECT 500 MCM #3/8
| Part | Terminal Style | Wire Gauge | Wire Gauge | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Terminal Type | Insulation | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Contact Material | Termination | Mounting Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Finish | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Two Stud Holes | 500 kcmil | 500 kcmil | 3/8 Stud | 101.85 mm | 4.01 in | Standard | Non-Insulated | 0.981 in | 24.92 mm | 10.31 mm | 0.406 " | Copper | Barrel Crimp | Free Hanging (In-Line) | 32 mm | 1.26 in | Tin | 6.6 mm | 0.26 in |
