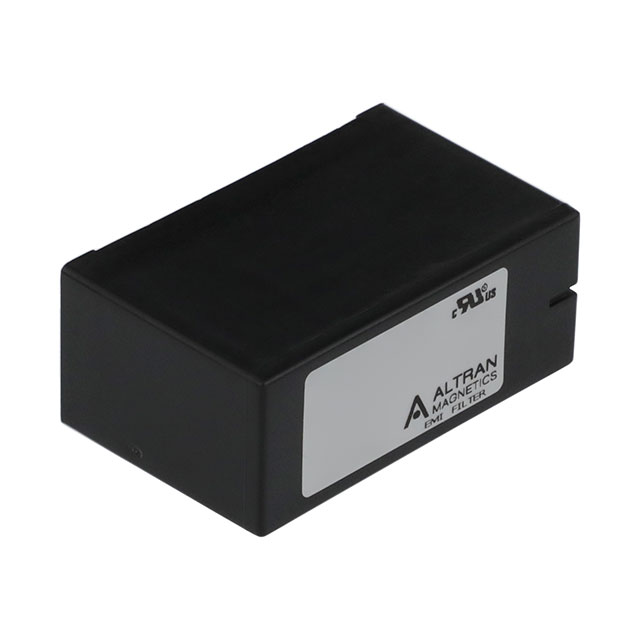

AMI-B11AW Series

Catalog

POWER LINE FILTER SINGLE PHASE 50HZ/60HZ 1A 250VAC PC PINS THRU-HOLE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Filter Type	Current	Inductance	Termination Style	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Voltage - Rated AC
Altran Magnetics, LLC AMI-B11AW3-13-1-B	40 °C	-10 °C	General Purpose	Single Phase	1 A	21.2 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW3-13-3-B	40 °C	-10 °C	General Purpose	Single Phase	3 A	13.77 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW1-13-3-B	40 °C	-10 °C	General Purpose	Single Phase	3 A	2.3 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW2-13-4-B	40 °C	-10 °C	General Purpose	Single Phase	4 A	4.68 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW1-13-6-B	40 °C	-10 °C	General Purpose	Single Phase	6 A	1.89 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW2-13-2-B	40 °C	-10 °C	General Purpose	Single Phase	2 A	5.7 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW3-13-2-B	40 °C	-10 °C	General Purpose	Single Phase	2 A	21.52 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW1-13-4-B	40 °C	-10 °C	General Purpose	Single Phase	4 A	2.2 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
Altran Magnetics, LLC AMI-B11AW2-13-3-B	40 °C	-10 °C	General Purpose	Single Phase	3 A	9.57 mH	PC Pins	Through Hole	60 Hz	50 Hz	Single Stage	250 V
