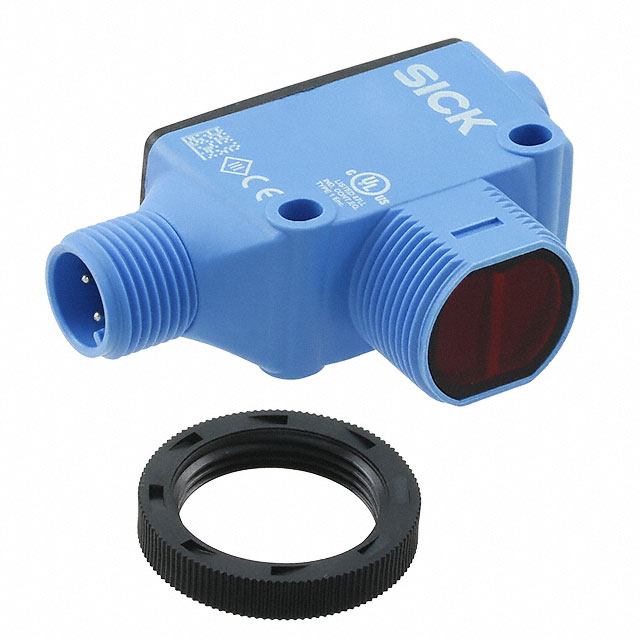

HL18 Series

Catalog

SENSOR RETROREFLECTIVE 6.5M PNP

Part	Sensing Method	Connection Method	Response Time	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Ingress Protection	Light Source	Output Configuration	Adjustment Type	Voltage - Supply [Min]	Voltage - Supply [Max]
SICK, Inc. 1071773	Retroreflective	Cable	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C	78.74 "	2 m	IP67 IP69K	Red (631nm)	PNP	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1078776	Retroreflective	Connector M8	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C			IP67	Red (631nm)	PNP	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1078610	Retroreflective	Cable with Connector	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C	5.906 in	150 mm	IP67	Red (631nm)	NPN PNP		10 VDC	30 VDC
SICK, Inc. HL18-A4A3AA	Retroreflective	Connector M12	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C			IP67	Red (631nm)	NPN PNP		10 VDC	30 VDC
SICK, Inc. HL18-B4A3BH	Retroreflective	Connector M12	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C			IP67 IP69K	Red (631nm)	NPN PNP	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1071049	Retroreflective	Cable with Connector	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C	5.906 in	150 mm	IP67	Red (631nm)	PNP		10 VDC	30 VDC
SICK, Inc. 1083176	Retroreflective	Cable	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C	78.74 "	2 m	IP67	Red (631nm)	NPN PNP	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1079778	Retroreflective	Cable with Connector	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C	11.81 "	0.3 m	IP67 IP69K	Red (631nm)	PNP	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. HL18-N4A3BB	Retroreflective	Connector M12	500 µs	6.5 m	255.906 in	30 mm	1.181 in	70 °C	-40 ¯C			IP67	Red (631nm)	NPN	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1071743	Retroreflective	Connector M12 4POS	500 µs	5 m	196.85 "	30 mm	1.181 in	70 °C	-40 C			IP67 IP69K	Red LED	PNP - Dark-ON/Light-ON - Selectable		10 VDC	30 VDC
