041662 Series

Manufacturer: Molex

Catalog

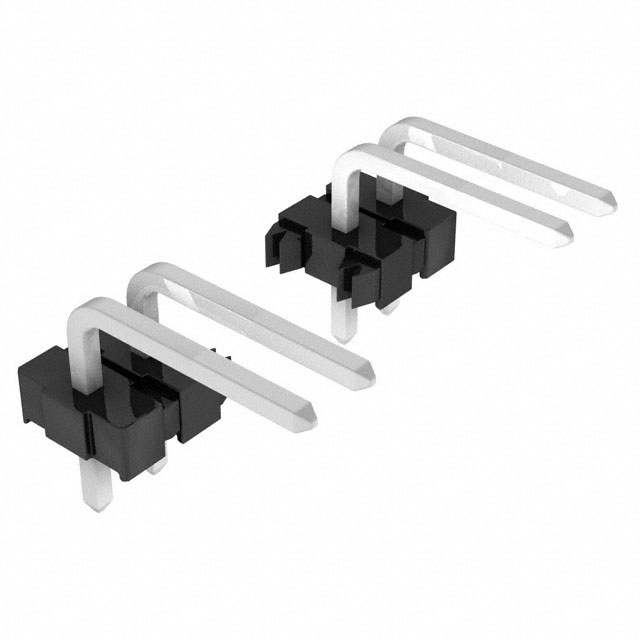

CONN HEADER R/A 10POS 3.96MM

Part	Applications	Material Flammability Rating	Insulation Color	Style	Number of Positions	Shrouding	Mounting Type	Contact Shape	Contact Finish - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Material	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Termination	Contact Type	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Length - Mating [custom]	Contact Length - Mating [custom]
Molex 0416620009	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable	10	Unshrouded	Through Hole Right Angle	Square	Gold	Polyester Glass Filled	2.54 µm	100 µin	Breakaway Header	0.575 in	14.61 mm	3.25 mm	0.128 in	Push-Pull	15 µin	0.38 µm	4.62 mm	0.182 in	1	Brass	All	Tin	0.156 in	3.96 mm	Solder	Male Pin
Molex 0416620018	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable	19	Unshrouded	Through Hole Right Angle	Square	Gold	Polyester Glass Filled	2.54 µm	100 µin	Breakaway Header	0.575 in	14.61 mm	3.25 mm	0.128 in	Push-Pull	15 µin	0.38 µm	4.62 mm	0.182 in	1	Brass	All	Tin	0.156 in	3.96 mm	Solder	Male Pin
Molex 0416620027	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable		Unshrouded	Through Hole Right Angle	Square	Gold	Polyester Glass Filled	2.54 µm	100 µin	Breakaway Header	0.575 in	14.61 mm	3.25 mm	0.128 in	Push-Pull	30 Áin	0.76 Ám	4.62 mm	0.182 in	1	Brass	All	Tin	0.156 in	3.96 mm	Solder	Male Pin
Molex 0416620007	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable	8	Unshrouded	Through Hole Right Angle	Square	Gold	Polyester Glass Filled	2.54 µm	100 µin	Breakaway Header	0.575 in	14.61 mm	3.25 mm	0.128 in	Push-Pull	15 µin	0.38 µm	4.62 mm	0.182 in	1	Brass	All	Tin	0.156 in	3.96 mm	Solder	Male Pin
Molex 0416620546	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable		Unshrouded	Through Hole Right Angle	Square		Polyester Glass Filled	1.52 µm	60 µin	Breakaway Header	0.572 in	14.53 mm	3.25 mm	0.128 in	Push-Pull	60 Áin	1.52 Ám	4.88 mm	0.192 in	1	Brass		Tin	0.156 in	3.96 mm	Solder	Male Pin	3
Molex 0416620006	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable	7	Unshrouded	Through Hole Right Angle	Square	Gold	Polyester Glass Filled	2.54 µm	100 µin	Breakaway Header	0.575 in	14.61 mm	3.25 mm	0.128 in	Push-Pull	15 µin	0.38 µm	4.62 mm	0.182 in	1	Brass	All	Tin	0.156 in	3.96 mm	Solder	Male Pin
Molex 0416620684	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable		Unshrouded	Through Hole Right Angle	Square		Polyester Glass Filled			Breakaway Header			3.25 mm	0.128 in	Push-Pull	60 Áin	1.52 Ám			1	Brass		Tin	0.156 in	3.96 mm	Solder	Male Pin
Molex 0416620623	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable	15	Unshrouded	Through Hole Right Angle	Square		Polyester Glass Filled	1.52 µm	60 µin	Breakaway Header	0.485 "	12.32 mm	3.25 mm	0.128 in	Push-Pull	60 Áin	1.52 Ám	3.5 mm	0.138 in	1	Brass		Tin	0.156 in	3.96 mm	Solder	Male Pin	14
Molex 0416620504	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable	6	Unshrouded	Through Hole Right Angle	Square		Polyester Glass Filled	1.52 µm	60 µin	Breakaway Header			3.25 mm	0.128 in	Push-Pull	60 Áin	1.52 Ám			1	Brass	All	Tin	0.156 in	3.96 mm	Solder	Male Pin		10.98 mm	0.432 in	0.275 in	6.99 mm
Molex 0416620002	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Black	Board to Board Cable		Unshrouded	Through Hole Right Angle	Square	Gold	Polyester Glass Filled	2.54 µm	100 µin	Breakaway Header	0.575 in	14.61 mm	3.25 mm	0.128 in	Push-Pull	15 µin	0.38 µm	4.62 mm	0.182 in	1	Brass	All	Tin	0.156 in	3.96 mm	Solder	Male Pin
