FT2232 Series
Manufacturer: FTDI, Future Technology Devices International Ltd
Beta
⌘K
IC USB HS DUAL UART/FIFO 64-QFN
| Part | Standards | Protocol | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Supply | Function | Package / Case | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Voltage - Supply | Supplied Contents | Embedded | Primary Attributes | Primary Attributes [Min] | Primary Attributes [Max] | Utilized IC / Part | Type | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

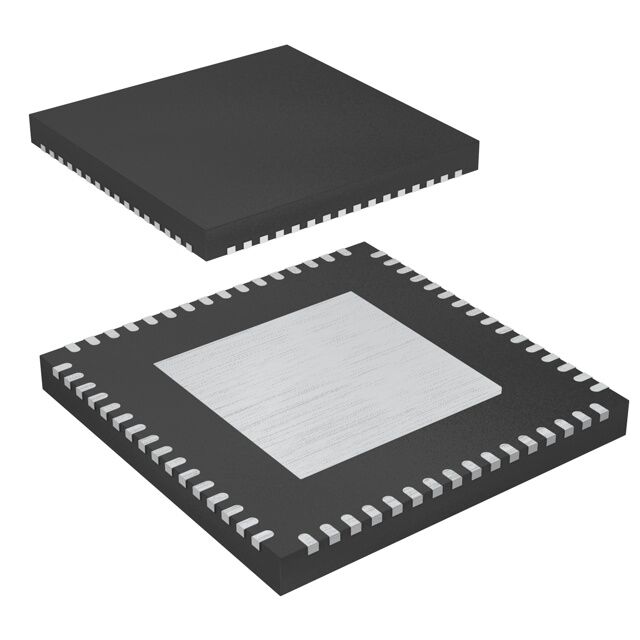

 FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | 3.6 V | 3 V | 70 mA | Bridge FIFO USB to UART | 64-VFQFN Exposed Pad | UART | 85 °C | -40 C | 64-QFN | 9 | 9 | |||||||||
 FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | Bridge FIFO USB to UART | 56-VFQFN Exposed Pad | FIFO UART | 85 °C | -40 C | 56-VQFN (8x8) | 3.3 V | |||||||||||||

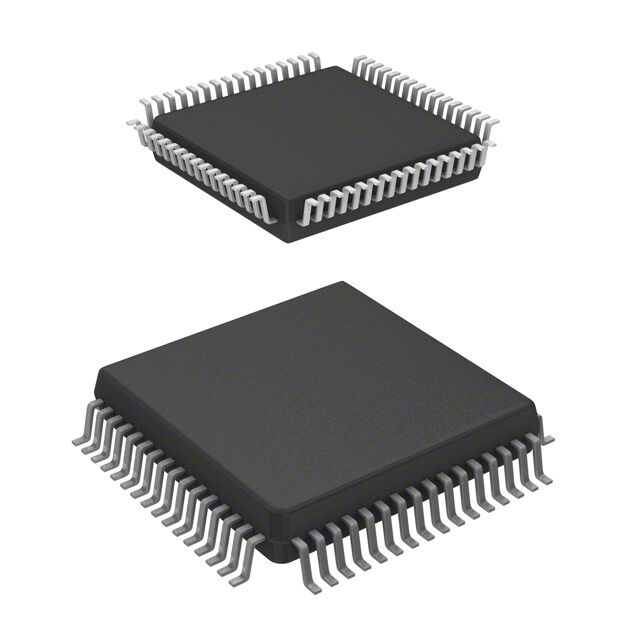

 FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | 3.6 V | 3 V | 70 mA | Bridge FIFO USB to UART | 64-LQFP | UART | 85 °C | -40 C | 64-LQFP (10x10) | |||||||||||

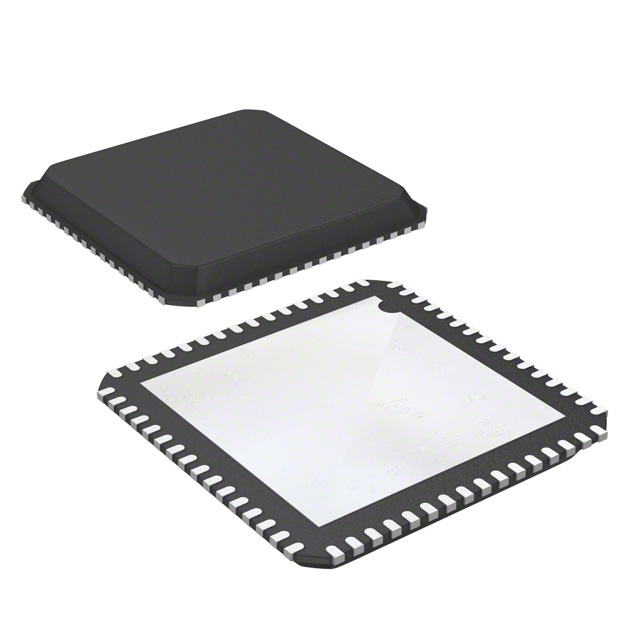

 FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | 3.6 V | 3 V | 70 mA | Bridge FIFO USB to UART | 64-VFQFN Exposed Pad | UART | 85 °C | -40 C | 64-QFN | 9 | 9 | |||||||||

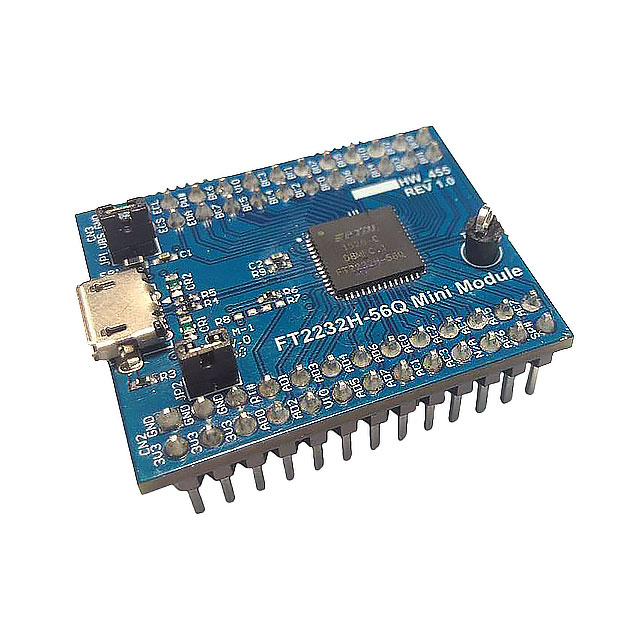

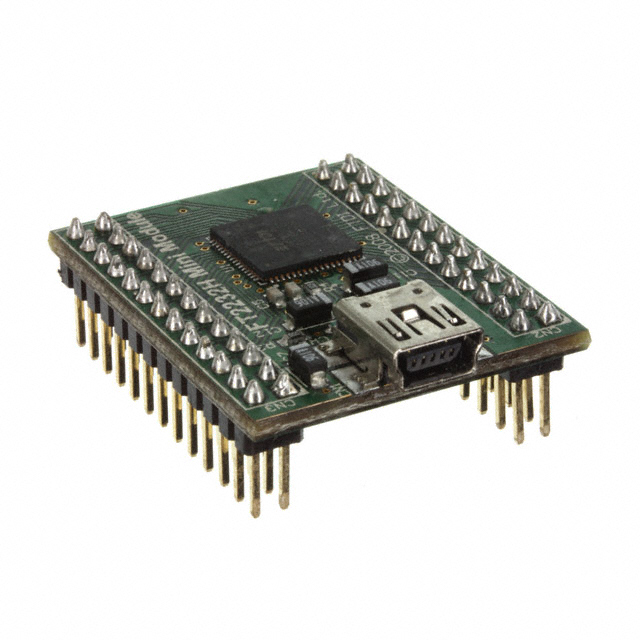

 FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | Bridge USB to UART Controller | Module | FIFO | 85 °C | -40 C | Module | ||||||||||||||
 FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | 5.25 V | 4.35 V | 30 mA | Bridge USB to UART | 48-LQFP | UART | 85 °C | -40 C | 48-LQFP (7x7) | |||||||||||
 FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | 3.6 V | 3 V | 70 mA | Bridge FIFO USB to UART | 64-LQFP | UART | 85 °C | -40 C | 64-LQFP (10x10) | |||||||||||
 FTDI, Future Technology Devices International Ltd | I2C JTAG SPI UART USB 2.0 | Board(s) | Asynch Serial Data High Speed | 300 baud | 12 Mbaud | FT2232H | Interface | Board(s) | ||||||||||||||
FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | Bridge FIFO USB to UART | 56-VFQFN Exposed Pad | FIFO UART | 85 °C | -40 C | 56-VQFN (8x8) | 3.3 V | |||||||||||||
FTDI, Future Technology Devices International Ltd | USB 2.0 | USB | 5.25 V | 4.35 V | 30 mA | Bridge USB to UART | 48-LQFP | UART | 85 °C | -40 C | 48-LQFP (7x7) |
