680M7W2 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DA-7W2, 5 CONTACTS, RECEPTACLE, 2
| Part | Color | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Rows [custom] | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Material Flammability Rating | Mounting Type | Shell Material, Finish | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Connector Style | Current Rating (Amps) | Connector Type | Flange Feature | Features | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

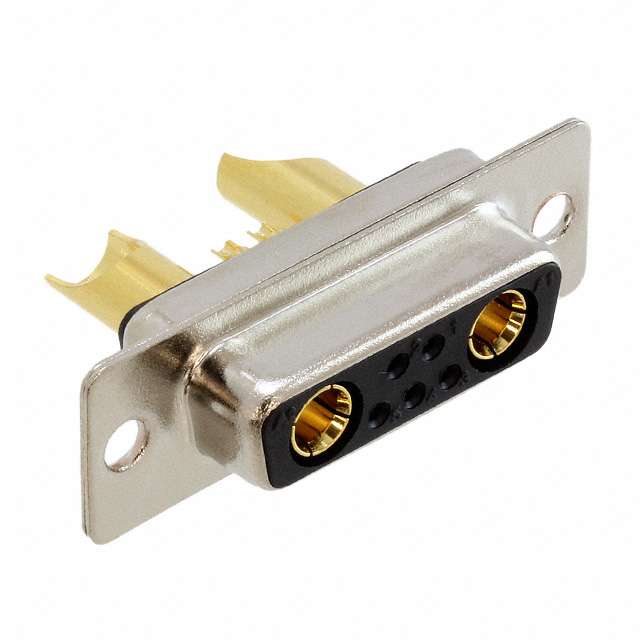

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | 155 C | -55 C | Copper Alloy | 2 | Gold | A DA | 2 | 7W2 | Signal and Power | UL94 V-0 | Panel Mount | Nickel Plated Steel | 7 | 5 | 2 | Flash | Combo D-Sub | 5 A 40 A | Receptacle Female Sockets | Housing/Shell (Unthreaded) | ||

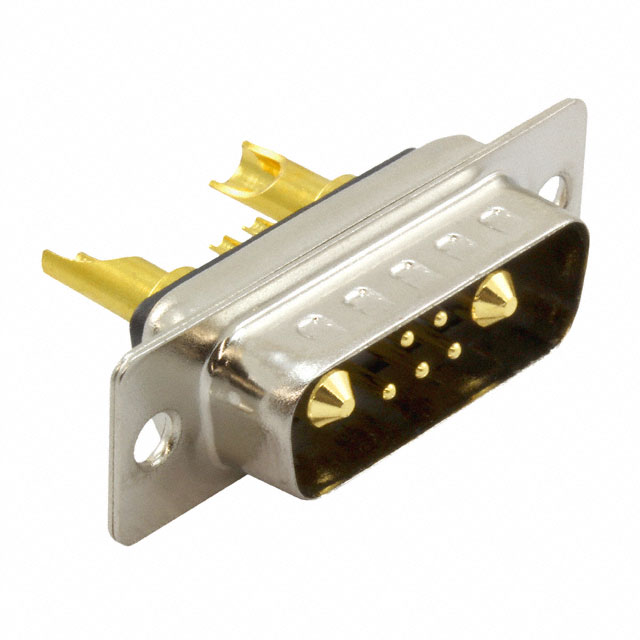

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | 155 C | -55 C | Copper Alloy | 2 | Gold | A DA | 2 | 7W2 | Signal and Power | UL94 V-0 | Panel Mount | Nickel Plated Steel | 7 | 5 | 2 | Flash | Combo D-Sub | Plug Male Pins | Housing/Shell (Unthreaded) | Grounding Indents | 20A 5A |
