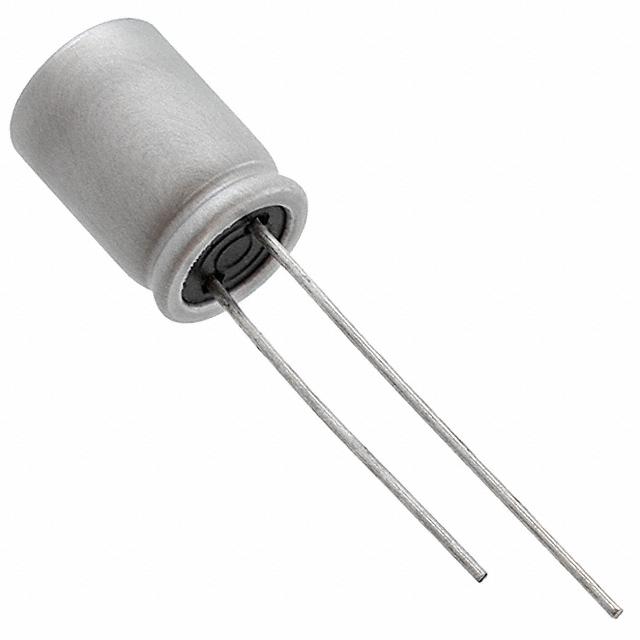

35SEPF Series

Manufacturer: Panasonic Electronic Components

Catalog

CAPACITOR: POLYMER; 120UF; 35VDC; THT; ±20%; BODY DIM: Ø10X13MM

Part	Voltage - Rated	Capacitance	Package / Case	Ripple Current @ High Frequency	Applications	Type	Tolerance	Mounting Type	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]
Panasonic Electronic Components 35SEPF120M+T	35 V	120 µF	Can Radial	4.4 A	General Purpose	Polymer	20 %	Through Hole	5000 Hrs	0.512 "	13 mm	-55 C	105 ░C	220 mA	0.197 "	5 mm	0.394 in	10 mm
Panasonic Electronic Components 35SEPF82M	35 V	0.082 mF	Can Radial	4 A	General Purpose	Polymer	20 %	Through Hole	5000 Hrs			-55 C	105 ░C	200 mA	0.138 in	3.5 mm	0.315 in	8 mm	0.472 in	12 mm	20 mOhms
Panasonic Electronic Components 35SEPF120M	35 V	120 µF	Can Radial	4.4 A	General Purpose	Polymer	20 %	Through Hole	5000 Hrs	0.512 "	13 mm	-55 C	105 ░C	220 mA	0.197 "	5 mm	0.394 in	10 mm
Panasonic Electronic Components 35SEPF39M	35 V	39 µF	Can Radial	2.8 A	General Purpose	Polymer	20 %	Through Hole	5000 Hrs			-55 C	105 ░C	140 mA	0.138 in	3.5 mm	0.315 in	8 mm	0.276 in		30 mOhms	7 mm
Panasonic Electronic Components 35SEPF22M	35 V	22 µF	Can Radial	2.6 A	General Purpose	Polymer	20 %	Through Hole	5000 Hrs			-55 C	105 ░C	130 mA	0.098 in	2.5 mm	0.248 "	6.3 mm	0.236 "	6 mm	35 mOhms
Panasonic Electronic Components 35SEPF82M+TSS	35 V	0.082 mF	Can Radial	4 A	General Purpose	Polymer	20 %	Through Hole	5000 Hrs			-55 C	105 ░C	200 mA	0.138 in	3.5 mm	0.315 in	8 mm	0.472 in	12 mm	20 mOhms
