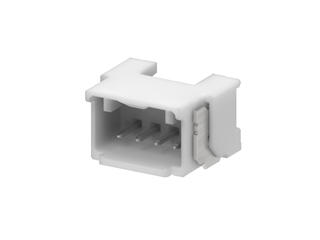

Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 4 Circuits, Tin-Bismuth Plating, Natural
Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 4 Circuits, Tin-Bismuth Plating, Natural
Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 4 Circuits, Tin-Bismuth Plating, Natural
| Part | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Pitch - Mating [x] | Pitch - Mating [x] | Fastening Type | Contact Shape | Contact Finish - Post | Number of Positions Loaded | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Current Rating (Amps) | Voltage Rating | Number of Rows | Material Flammability Rating | Number of Positions | Contact Type | Contact Material | Connector Type | Shrouding | Style | Mounting Type | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Tin-Bismuth | 1 µm | 39.4 µin | Natural | 0.079 in | 2 mm | Push-Pull | Square | Tin | All | Nylon Polyamide (PA) | -40 °C | 105 ░C | 0.283 " | 7.19 mm | Varies by Wire Gauge | 250 VAC | 1 | UL94 V-0 | 4 | Male Pin | Brass | Header | Shrouded - 4 Wall | Board to Cable/Wire | Surface Mount Right Angle | Solder Retention | 1 çm | 39.4 çin | Solder |

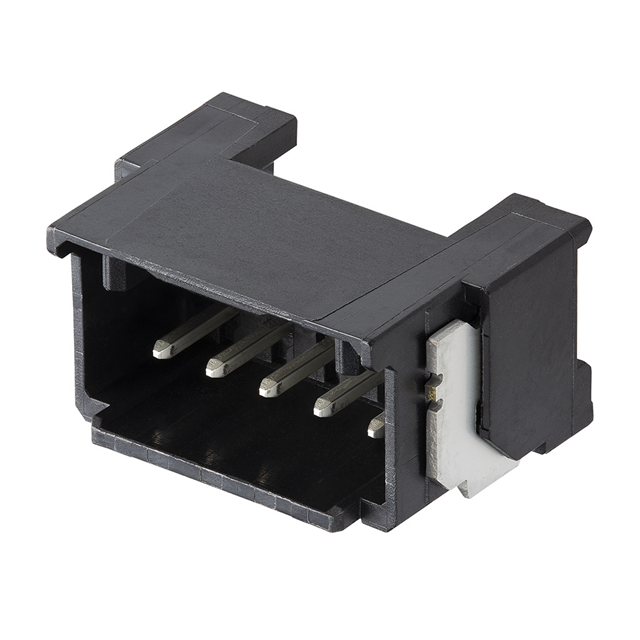

 Molex | Tin-Bismuth | 1 µm | 39.4 µin | Black | 0.079 in | 2 mm | Latch Lock | Square | Tin-Bismuth | All | Nylon Polyamide (PA) | -40 °C | 105 ░C | 0.283 " | 7.19 mm | Varies by Wire Gauge | 250 VDC | 1 | UL94 V-0 | 2 | Male Pin | Brass | Header | Shrouded - 4 Wall | Board to Cable/Wire | Surface Mount Right Angle | Solder Retention | 1 çm | 39.4 çin | Solder |
Molex | Tin-Bismuth | 1 µm | 39.4 µin | Black | 0.079 in | 2 mm | Latch Lock | Square | Tin-Bismuth | All | Nylon Polyamide (PA) | -40 °C | 105 ░C | 0.283 " | 7.19 mm | Varies by Wire Gauge | 250 VDC | 1 | UL94 V-0 | 8 | Male Pin | Brass | Header | Shrouded - 4 Wall | Board to Cable/Wire | Surface Mount Right Angle | Solder Retention | 1 çm | 39.4 çin | Solder |
