R18325 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

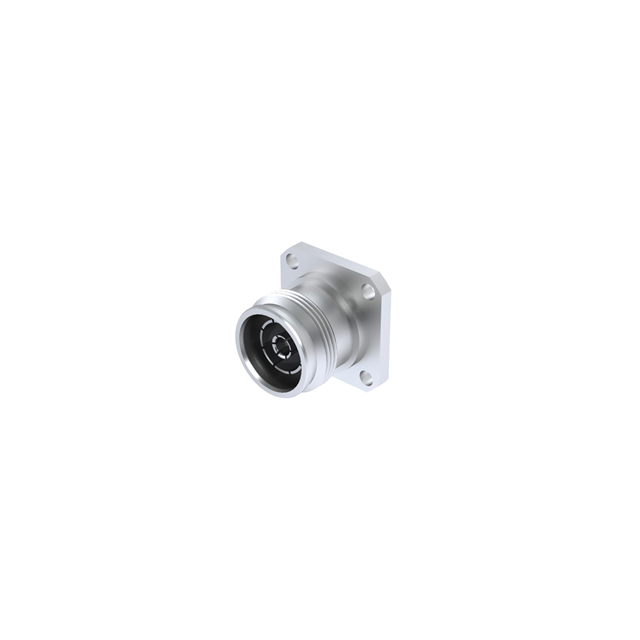

4.3-10 / STRAIGHT SQUARE FLANGE
| Part | Body Material | Center Contact Plating | Voltage Rating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mounting Feature | Contact Termination | Housing Color | Frequency - Max [Max] | Impedance | Fastening Type | Ingress Protection | Shield Termination | Connector Style | Center Contact Material | Connector Type | Number of Ports | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Silver | 500 V | Polytetrafluoroethylene (PTFE) | 90 °C | -55 C | White Bronze | Flange | Solder | Silver | 6000 MHz | 50 Ohms | Threaded | IP67 - Dust Tight Waterproof | Solder | 4.3/10 | Bronze | Female Socket Jack | 1 | Panel Mount |
