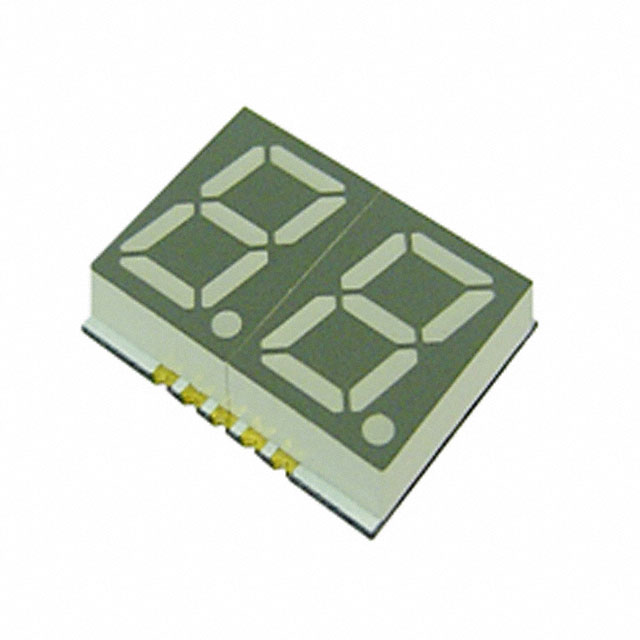

QBDS560 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K
DISP 7SEG 0.56" DBL YLW-GN 10SMD
| Part | Package / Case | Voltage - Forward (Vf) (Typ) | Common Pin | Digit/Alpha Size | Digit/Alpha Size | Display Type | Power Dissipation (Max) [Max] | Number of Characters | Millicandela Rating | Current - Test | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Color | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | 10-SMD No Lead | 2 V | Common Anode | 0.56 in | 14.22 mm | 7-Segment | 70 mW | 2 | 12 mcd | 20 mA | 19 mm | 0.152 " | 3.85 mm | 0.985 in | 25 mm | 0.748 in | Yellow-Green | 570 nm |
