5202FL Series
Manufacturer: Belden Inc.
Beta
⌘K

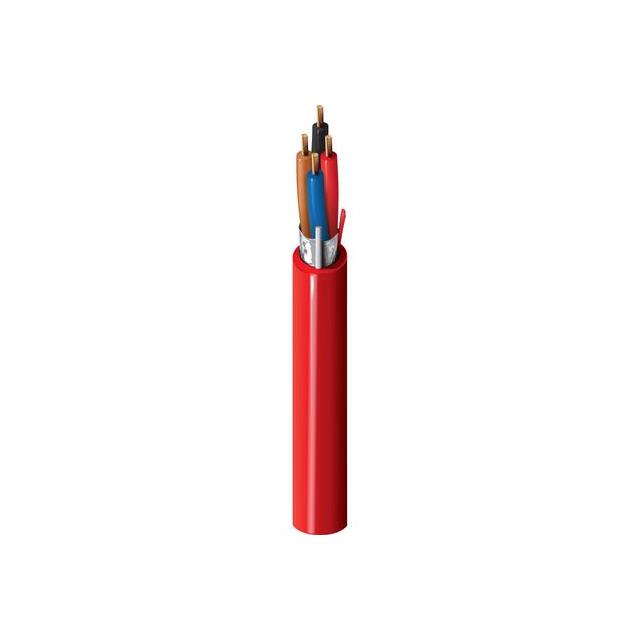

CABLE 4COND 16AWG RED SHLD
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Material | Jacket Color | Shield Type | Number of Conductors | Features | Conductor Insulation | Voltage | Wire Gauge | Ratings | Cable Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 19 | 29 | Alarm Safety | Poly-Vinyl Chloride (PVC) Riser | Red | Foil | 4 | Drain Wire Rip Cord | Polypropylene (PP) | 300 VDC | 16 AWG | UL Style FPLR | Multi-Conductor | 304.8 m | 1000 ft | 5.44 mm | 0.214 in | Copper Bare | 0.017 " | 0.432 mm |
