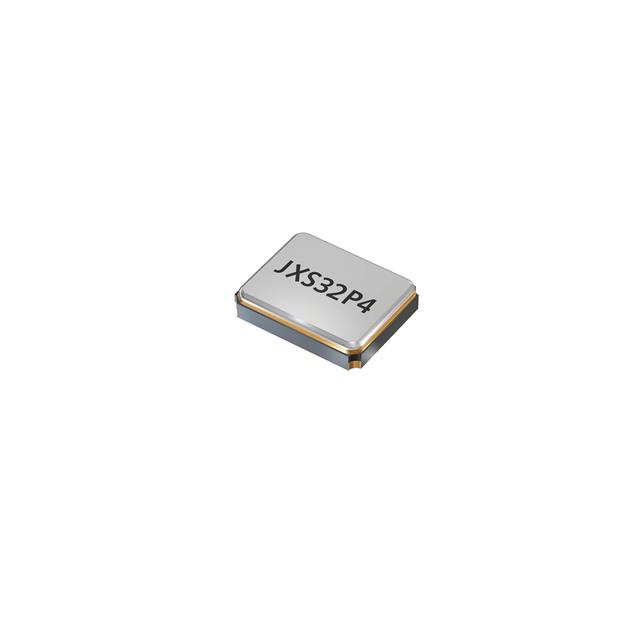

JXS32P4 Series

Catalog

CRYSTAL 32MHZ 12PF SMD

Part	Package / Case	Frequency Stability	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Load Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Frequency Tolerance	Operating Mode	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Ratings
Jauch Quartz Q 32,0-JXS32P4-12-20/20-T1-FU-AEC-LF	4-SMD No Lead	20 ppm	32 MHz	0.7 mm	0.028 "	12 pF	85 °C	-40 C	45 Ohm	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
Jauch Quartz Q 27,0-JXS32P4-12-20/20-T1-FU-AEC-LF	4-SMD No Lead	20 ppm	27 MHz	0.7 mm	0.028 "	12 pF	85 °C	-40 C	45 Ohm	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
Jauch Quartz Q 25,0-JXS32P4-8-20/20-T1-FU-AEC-LF	4-SMD No Lead	20 ppm	25 MHz	0.7 mm	0.028 "	8 pF	85 °C	-40 C	45 Ohm	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
Jauch Quartz Q 30,0-JXS32P4-12-20/20-T1-FU-AEC-LF	4-SMD No Lead	20 ppm	30 MHz	0.7 mm	0.028 "	12 pF	85 °C	-40 C	45 Ohm	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
Jauch Quartz Q 12,0-JXS32P4-12-20/20-T1-AEC-LF	4-SMD No Lead	20 ppm	12 MHz	0.7 mm	0.028 "	12 pF	85 °C	-40 C	100 Ohms	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
Jauch Quartz Q 24,0-JXS32P4-12-20/20-T1-FU-AEC- LF	4-SMD No Lead	20 ppm	24 MHz	0.7 mm	0.028 "	12 pF	85 °C	-40 C	45 Ohm	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
Jauch Quartz Q 26,0-JXS32P4-8-20/20-T1-FU-AEC-LF	4-SMD No Lead	20 ppm	26 MHz	0.7 mm	0.028 "	8 pF	85 °C	-40 C	45 Ohm	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
Jauch Quartz Q 24,0-JXS32P4-8-20/20-T1-FU-AEC- LF	4-SMD No Lead	20 ppm	24 MHz	0.7 mm	0.028 "	8 pF	85 °C	-40 C	45 Ohm	20 ppm	Fundamental	MHz Crystal	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	AEC-Q200
