TVS DIODE AXIAL LEAD - BULK
...
| Part | Mounting Type | Bidirectional Channels [custom] | Supplier Device Package | Voltage - Reverse Standoff (Typ) | Voltage - Clamping (Max) @ Ipp [Max] | Power - Peak Pulse | Power - Peak Pulse | Current - Peak Pulse (10/1000µs) | Power Line Protection | Package / Case | Voltage - Breakdown (Min) [Min] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Type | Unidirectional Channels [custom] | Voltage - Clamping (Max) @ Ipp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Littelfuse/Commercial Vehicle Products | Through Hole | 1 | P600 | 180 V | 289 V | 3000 W | 3 kW | 10.4 A | P600 Axial | 200 V | General Purpose | -55 °C | 175 ░C | Zener | |||
 Littelfuse/Commercial Vehicle Products | Through Hole | P600 | 120 V | 202.65 V | 3000 W | 3 kW | P600 Axial | 126 V | General Purpose | -55 °C | 175 ░C | Zener | 1 | ||||
Littelfuse/Commercial Vehicle Products | Through Hole | 1 | P600 | 6 V | 10.82 V | 3000 W | 3 kW | 291.3 A | P600 Axial | 6.32 V | General Purpose | -55 °C | 175 ░C | Zener | |||
Littelfuse/Commercial Vehicle Products | Through Hole | 1 | P600 | 150 V | 255.15 V | 3000 W | 3 kW | 12.3 A | P600 Axial | 158.4 V | General Purpose | -55 °C | 175 ░C | Zener | |||
Littelfuse/Commercial Vehicle Products | Through Hole | 1 | P600 | 210 V | 3000 W | 3 kW | 8.6 A | P600 Axial | 220.95 V | General Purpose | -55 °C | 175 ░C | Zener | ||||
Littelfuse/Commercial Vehicle Products | Through Hole | P600 | 9 V | 15.4 V | 3000 W | 3 kW | 194.8 A | P600 Axial | 10 V | General Purpose | -55 °C | 175 ░C | Zener | 1 | |||
 Littelfuse/Commercial Vehicle Products | Through Hole | 1 | P600 | 6 V | 10.82 V | 3000 W | 3 kW | 291.3 A | P600 Axial | 6.32 V | General Purpose | -55 °C | 175 ░C | Zener | |||
Littelfuse/Commercial Vehicle Products | Through Hole | 1 | P600 | 40 V | 67.73 V | 3000 W | 3 kW | 46.5 A | P600 Axial | General Purpose | -55 °C | 175 ░C | Zener | ||||
 Littelfuse/Commercial Vehicle Products | Through Hole | P600 | 5 V | 3000 W | 3 kW | 326.1 A | P600 Axial | 6.4 V | General Purpose | -55 °C | 175 ░C | Zener | 1 | 9.2 V | |||
Littelfuse/Commercial Vehicle Products | Through Hole | P600 | 16 V | 3000 W | 3 kW | 115.4 A | P600 Axial | 16.88 V | General Purpose | -55 °C | 175 ░C | Zener | 1 | 27.3 V |
Description
AI

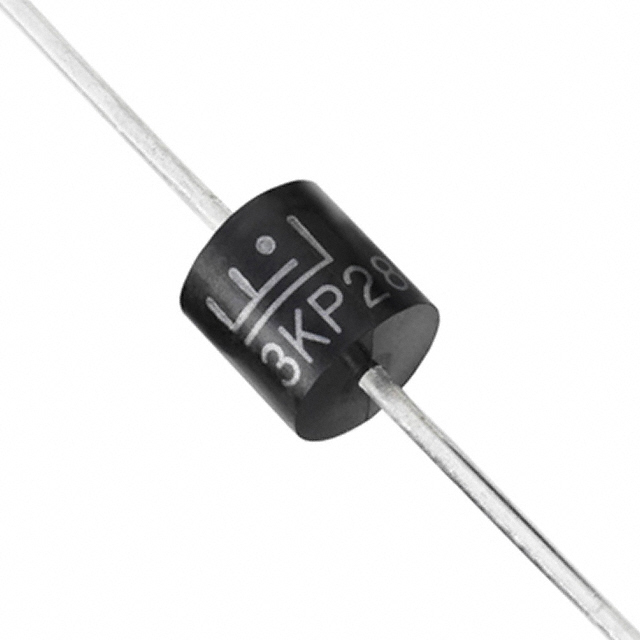

The 3KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Halogen-Free and RoHS compliant Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C Glass passivated junction 3000W peak pulse capability at 10×1000μs waveform, repetition rate (duty cycles):0.01% Fast response time: typically less than 1.0ps from 0 Volts to BV min Excellent clamping capability Low incremental surge resistance Typical IR less than 2μA above 12V High temperature soldering guaranteed: 265°C./10 seconds/ 0.375â€,(9.5mm) lead length, 51bs., (2.3kg) tension Plastic package has Underwriters Laboratory Flammability classification 94V-O Matte Tin Leadâ€"free plated
