R12105 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

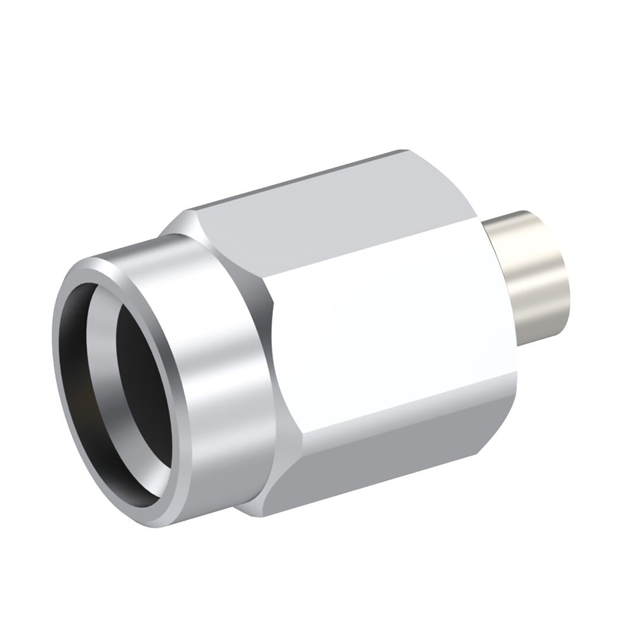

SSMA / STRAIGHT PLUG SOLDER TYPE
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Dielectric Material | Center Contact Plating | Voltage Rating | Housing Color | Number of Ports | Impedance | Frequency - Max [Max] | Shield Termination | Center Contact Material | Mounting Type | Connector Style | Cable Group | Fastening Type | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -55 C | 115 °C | Nickel | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Gold | 250 V | Silver | 1 | 50 Ohms | 18 GHz | Solder | Beryllium Copper | Free Hanging (In-Line) | SSMA | RG-405 (.085" Semi Rigid) | Threaded | Plug Male Pin | Solder |
