74HC14 Series

Catalog

IC INVERT SCHMITT 6CH 1INP 14DIP

Part	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Inputs [custom]	Package / Case	Package / Case	Package / Case	Max Propagation Delay @ V, Max CL	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Max) [Max]	Mounting Type	Number of Circuits

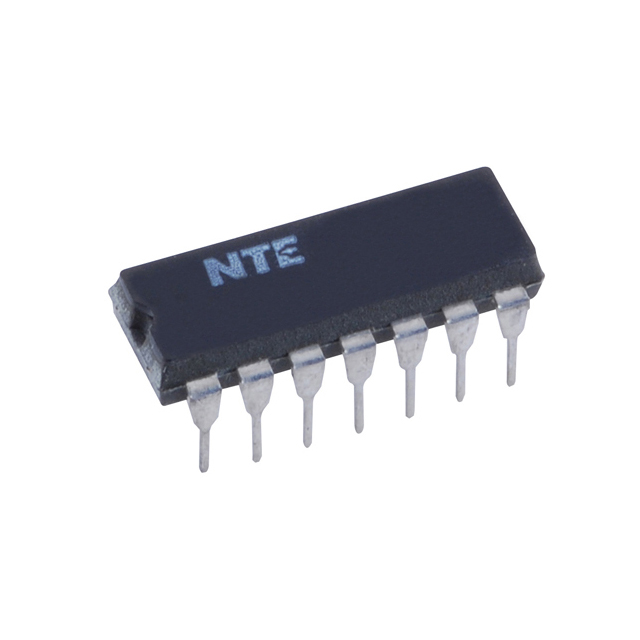

NTE Electronics, Inc NTE74HC14	Inverter	5.2 mA	5.2 mA	14-DIP	1.5 V	4.2 V	1.2 V	0.3 V	6 V	2 V	1	14-DIP	0.3 in	7.62 mm	19 ns	Schmitt Trigger	125 °C	-55 °C	40 µA	Through Hole	6
