842-098 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 98POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Contact Material	Card Type	Pitch	Pitch	Number of Positions	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Read Out	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions/Bay/Row	Flange Feature	Color	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 842-098-542-207	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Wire Wrap	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49	Flush Mount M3 Threaded Insert Top Opening	Green

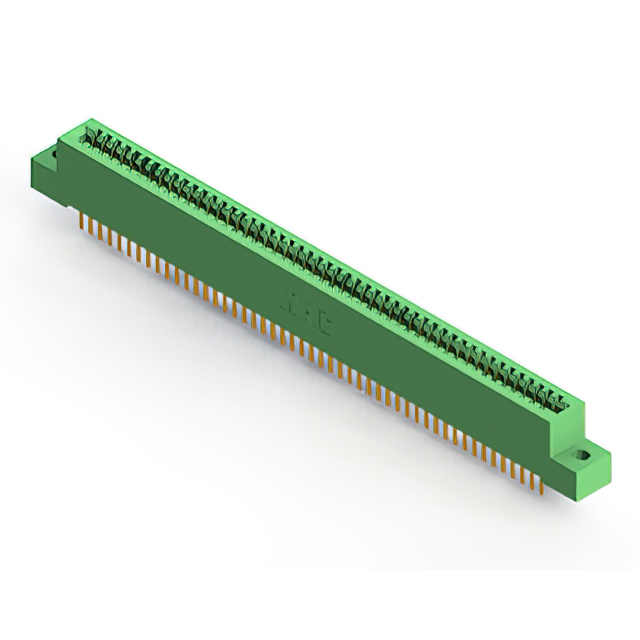

EDAC Inc. 842-098-520-202	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Solder	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49	Flush Mount Top Opening Unthreaded	Green	3.25 mm	0.128 "

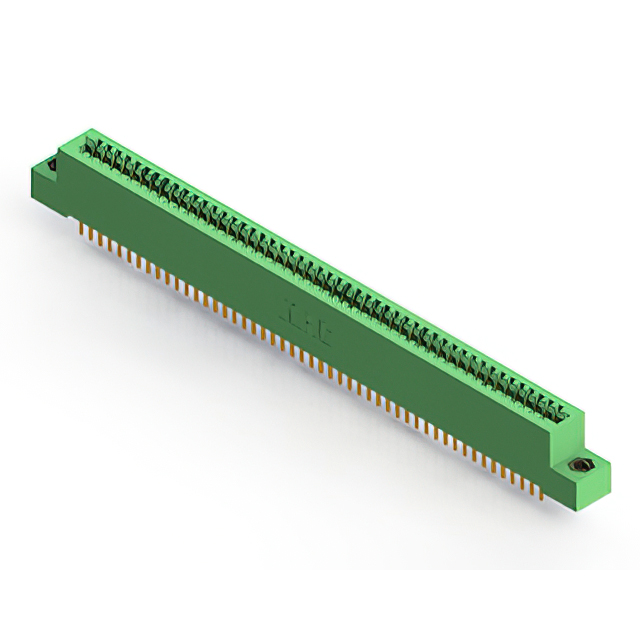

EDAC Inc. 842-098-521-207	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Solder	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49	Flush Mount M3 Threaded Insert Top Opening	Green
EDAC Inc. 842-098-544-207	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Wire Wrap	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49	Flush Mount M3 Threaded Insert Top Opening	Green
EDAC Inc. 842-098-542-201	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Wire Wrap	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49		Green
EDAC Inc. 842-098-540-208	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Wire Wrap	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49	4-40 Flush Mount Threaded Insert Top Opening	Green

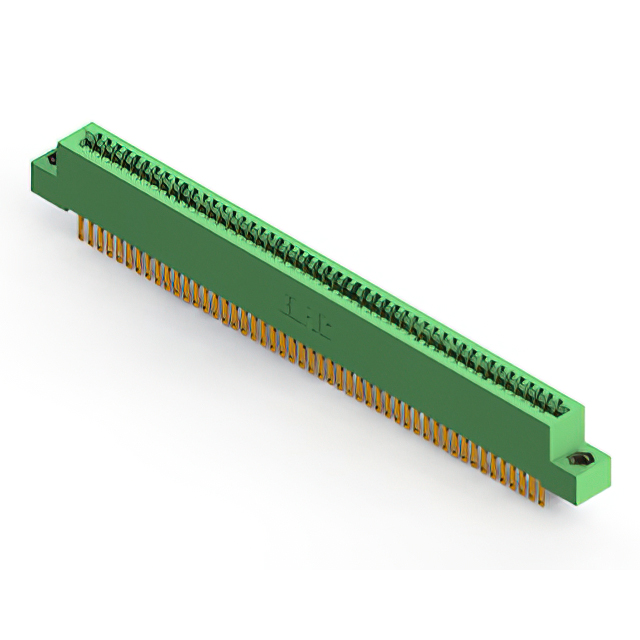

EDAC Inc. 842-098-500-208	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Solder Eyelet(s)	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49	4-40 Flush Mount Threaded Insert Top Opening	Green
EDAC Inc. 842-098-541-208	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Wire Wrap	Through Hole	Dual	Gold	0.25 Ám	10 Áin	Female	49	4-40 Flush Mount Threaded Insert Top Opening	Green

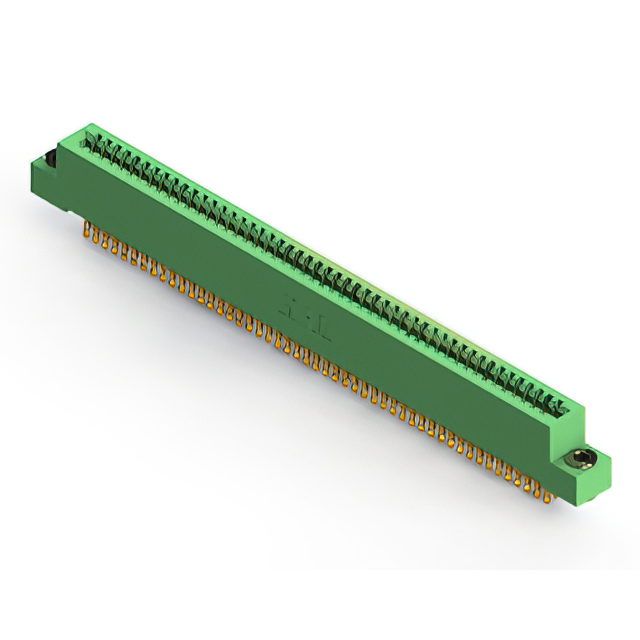

EDAC Inc. 842-098-555-203	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Solder	Board Edge Straddle Mount	Dual	Gold	0.25 Ám	10 Áin	Female	49	Floating Bobbin Flush Mount	Green	2.95 mm	0.116 "	Card Extender
EDAC Inc. 842-098-556-207	2	Diallyl Phthalate (DAP)	2	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	98	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Solder	Board Edge Straddle Mount	Dual	Gold	0.25 Ám	10 Áin	Female	49	Flush Mount M3 Threaded Insert Top Opening	Green			Card Extender
