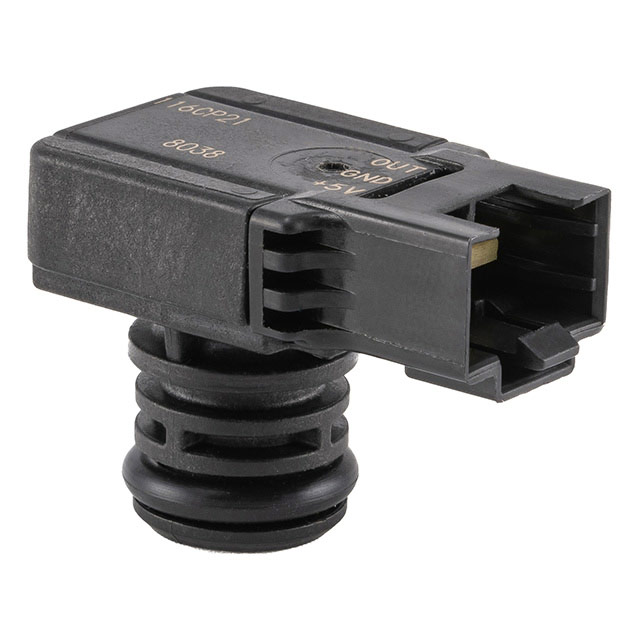

116CP21 Series

Catalog

SENSOR 150PSIS 0.59" 4.5V

Part	Termination Style	Port Style	Applications	Package / Case	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Operating Pressure	Operating Pressure	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure
Sensata Technologies 116CP21-M10S3-50	Connector	Barbed	Board Mount	Module	1.5 %	2068.43 kPa	300 PSI	Analog Voltage	1034.21 kPa	150 PSI	Sealed Gauge	2 °C	90 °C	0.5 V	4.5 V
Sensata Technologies 116CP21-M04S2-50	Connector	Barbed	Board Mount	Module	1.5 %	827.37 kPa	120 PSI	Analog Voltage	413.69 kPa	60 PSI	Sealed Gauge	2 °C	90 °C	0.5 V	3.5 V
Sensata Technologies 116CP21-M16S3-50	Connector	Barbed	Board Mount	Module	1.5 %			Analog Voltage	1585.79 kPa	230 PSI	Sealed Gauge	2 °C	90 °C	0.5 V	4.5 V	460 PSI	3171.59 kPa
