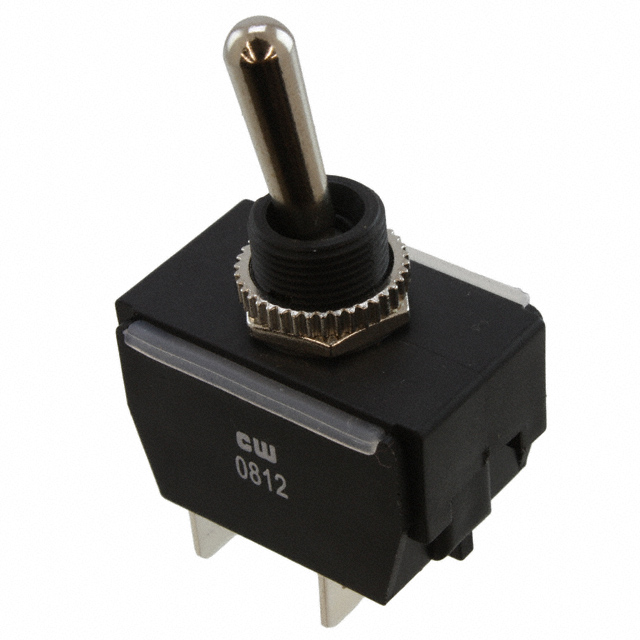

GTS448F Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH TOGGLE DPST 16A 250V
| Part | Electrical Life | Mounting Type | Circuit | Voltage Rating - AC | Termination Style | Actuator Length [x] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Panel Cutout Dimensions [diameter] | Illumination | Switch Function | Bushing Thread | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Cycles | Panel Mount | DPST | 250 V | Quick Connect - 0.250" (6.3mm) | 17.5 mm | 16 A | 0 °C | 85 °C | Standard Round | 12.2 mm Dia | Non-Illuminated | On-Off | 15/32-32 | IP56 - Dust Protected Water Resistant |
