PPTC342 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 68POS 0.1 TIN PCB R/A

Part	Contact Shape	Contact Material	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Color	Connector Type	Current Rating (Amps)	Contact Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Positions	Termination	Mounting Type	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

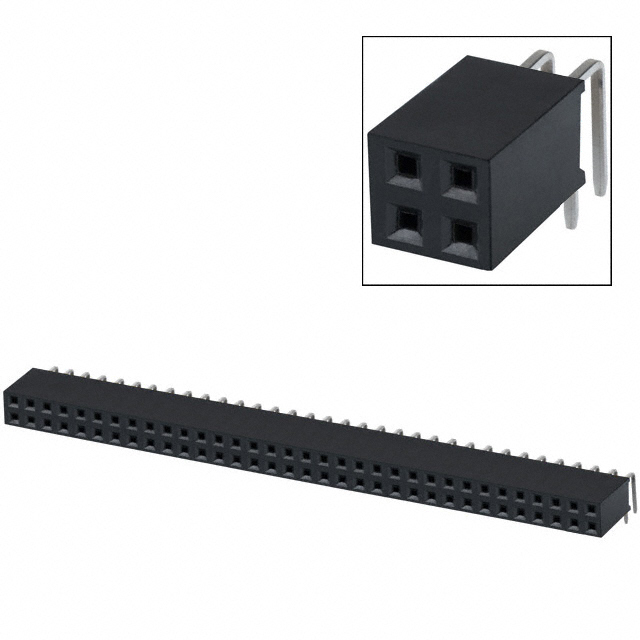

Sullins Connector Solutions PPTC342LJBN	Square	Phosphor Bronze	Polyester	0.1 in	2.54 mm	0.2 in	5.08 mm	250 V	0.1 "	2.54 mm	2	Black	Header	3 A	Female Socket	Tin	0.124 in	3.15 mm	UL94 V-0	68 positions	Solder	Right Angle Through Hole	Push-Pull	All	-40 C	105 ░C

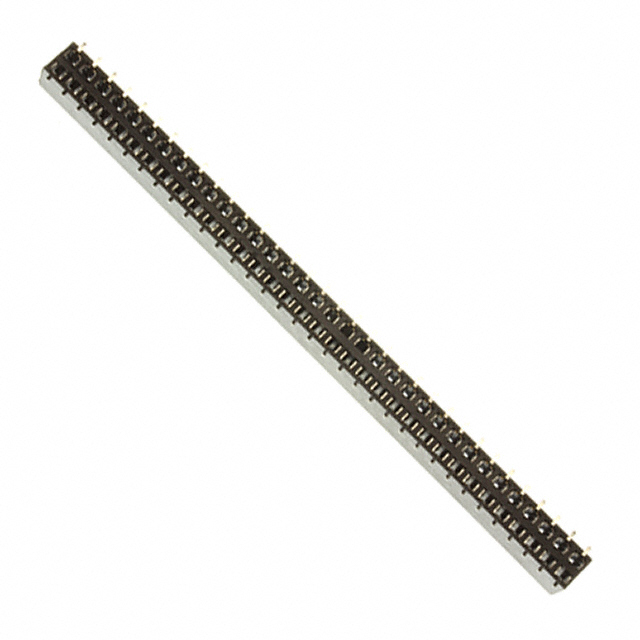

Sullins Connector Solutions PPTC342KFMS	Square	Phosphor Bronze	Polyester	0.1 in	2.54 mm	0.299 "		250 V	0.1 "	2.54 mm	2	Black	Header	3 A	Female Socket	Tin			UL94 V-0	68 positions	Solder	Surface Mount	Push-Pull	All	-40 C	125 °C	7.6 mm

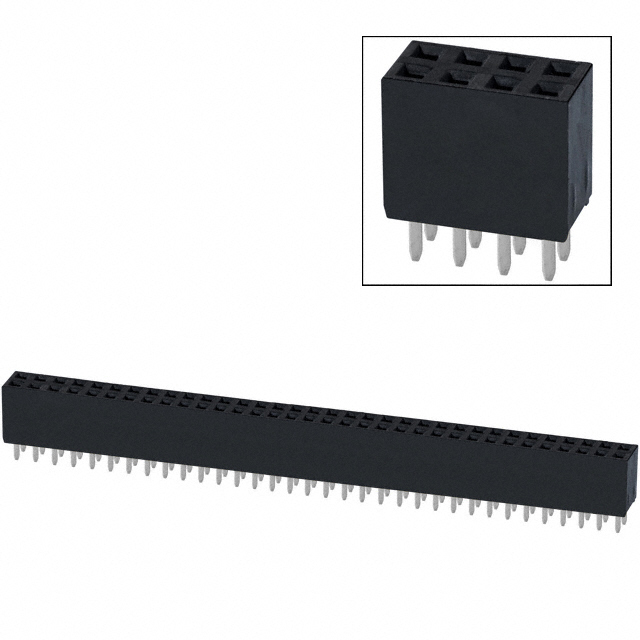

Sullins Connector Solutions PPTC342LFBN	Square	Phosphor Bronze	Polyester	0.1 in	2.54 mm			250 V	0.1 "	2.54 mm	2	Black	Header	3 A	Female Socket	Tin			UL94 V-0	68 positions	Solder	Through Hole	Push-Pull	All	-40 C	105 ░C	8.51 mm	0.335 "	0.126 "	3.2 mm
Sullins Connector Solutions PPTC342LFBN-RC	Square	Phosphor Bronze	Polyester	0.1 in	2.54 mm			250 V	0.1 "	2.54 mm	2	Black	Header	3 A	Female Socket	Tin			UL94 V-0	68 positions	Solder	Through Hole	Push-Pull	All	-40 C	105 ░C	8.51 mm	0.335 "	0.126 "	3.2 mm
Sullins Connector Solutions PPTC342LJBN-RC	Square	Phosphor Bronze	Polyester	0.1 in	2.54 mm	0.2 in	5.08 mm	250 V	0.1 "	2.54 mm	2	Black	Header	3 A	Female Socket	Tin	0.124 in	3.15 mm	UL94 V-0	68 positions	Solder	Right Angle Through Hole	Push-Pull	All	-40 C	105 ░C
