BU060Z Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

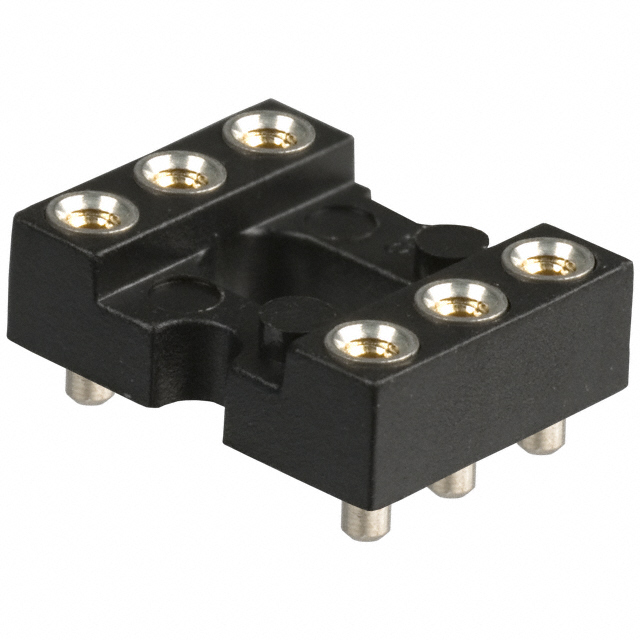

CONN IC DIP SOCKET 6POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Current Rating (Amps) | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Contact Material - Mating | Contact Material - Post [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Features | Contact Finish - Post | Type | Type | Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Housing Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 7 mOhm | UL94 V-0 | 0.059 " | 1.5 mm | 1 A | Surface Mount | 0.1 " | 2.54 mm | 3 positions or pins | 2 | 6 | Beryllium Copper | Brass | -55 C | 125 °C | Gold | Open Frame | Copper | 7.62 mm | 0.3 in | DIP | 78.7 µin | 2 µm | Flash | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | Solder |
