3122-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

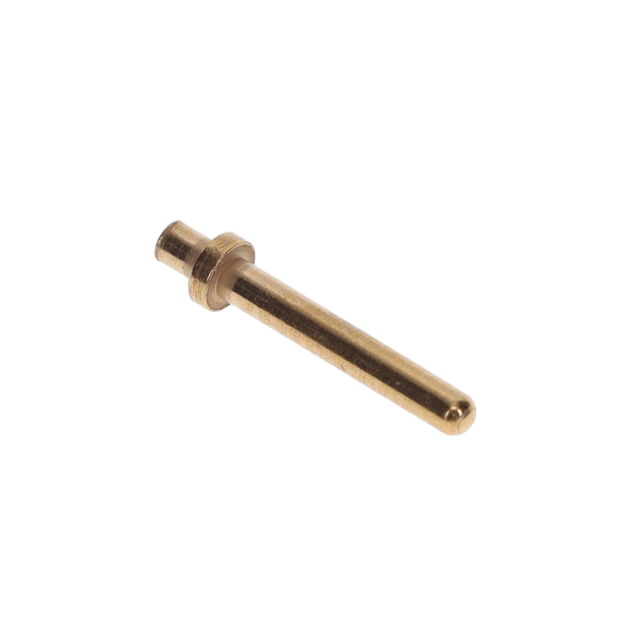

CONN PC PIN CIRC 0.040DIA GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Contact Finish | Insulation | Termination | Board Thickness | Board Thickness | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 50 µin | 1.27 µm | 8.92 mm | 0.351 in | 0.051 " | 1.3 mm | 7.11 mm | 0.28 in | PC Pin | Gold | Non-Insulated | Swage | 0.79 mm | 0.031 in | Through Hole | 1.77 mm | 0.07 in | 0.04 in | 1.02 mm | Single End | 0.043 in | 1.09 mm | Brass Alloy |
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | 8.92 mm | 0.351 in | 0.051 " | 1.3 mm | 7.11 mm | 0.28 in | PC Pin | Gold | Non-Insulated | Swage | 0.79 mm | 0.031 in | Through Hole | 1.77 mm | 0.07 in | 0.04 in | 1.02 mm | Single End | 0.043 in | 1.09 mm | Brass Alloy |
Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 8.92 mm | 0.351 in | 0.051 " | 1.3 mm | 7.11 mm | 0.28 in | PC Pin | Tin | Non-Insulated | Swage | 0.79 mm | 0.031 in | Through Hole | 1.78 mm | 0.07 in | 0.04 in | 1.02 mm | Single End | 0.043 in | 1.09 mm | Brass |
Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 8.92 mm | 0.351 in | 0.051 " | 1.3 mm | 7.11 mm | 0.28 in | PC Pin | Tin-Lead | Non-Insulated | Swage | 0.79 mm | 0.031 in | Through Hole | 1.77 mm | 0.07 in | 0.04 in | 1.02 mm | Single End | 0.043 in | 1.09 mm | Brass Alloy |
