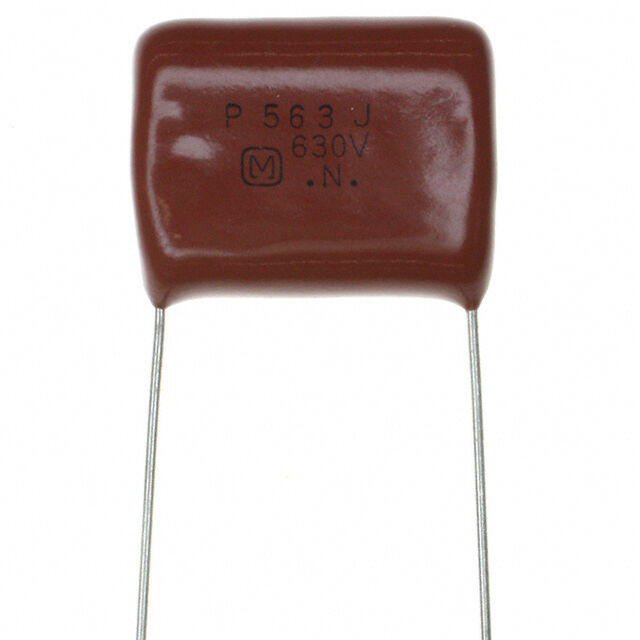

ECQ-P6563 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP FILM 0.056UF 5% 630VDC RAD
| Part | Dielectric Material | Termination | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Applications | Tolerance | Capacitance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lead Spacing [x] | Lead Spacing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Polypropylene (PP) | PC Pins | 0.965 " | 24.5 mm | 10 mm | 0.394 in | Radial | -40 C | 105 ░C | Through Hole | DV/DT High Frequency High Pulse Switching | 5 % | 56000 pF | 0.748 in | 19 mm | 0.787 in | 20 mm |
