TCBNS Series
Manufacturer: Essentra Components
Beta
⌘K

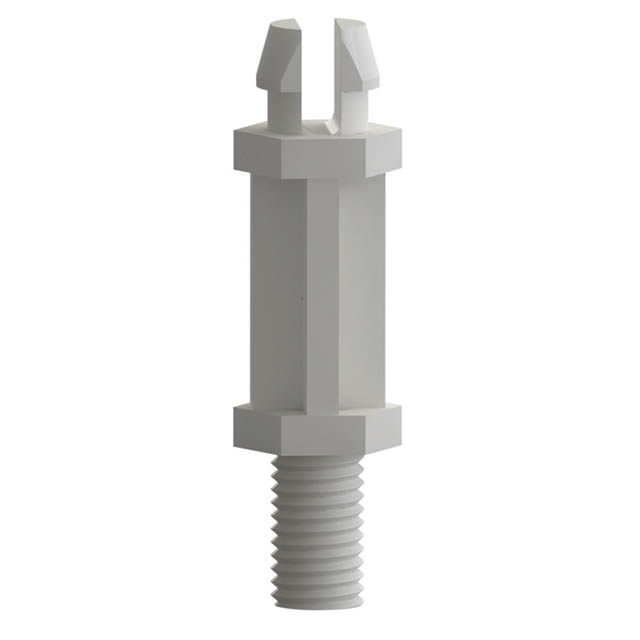

BRD SPT THR STUD SNAP LOCK 3MM
| Part | Between Board Height [z] | Between Board Height [z] | Mounting Type | Material | Mounting Panel Thickness | Mounting Panel Thickness [custom] | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter | Mounting Hole Diameter | Features | Holding Type | Support Panel Thickness | Support Panel Thickness | Between Board Height | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 0.118 in | 3 mm | Snap Lock | Nylon | 1.6 mm | 0.063 in | 0.512 " | 13 mm | 0.118 in | 3 mm | M3 Thread | Threaded Stud | 0.236 in | 6 mm | ||
Essentra Components | Snap Lock | Nylon | 1.6 mm | 0.063 in | 0.709 " | 18 mm | 0.118 in | 3 mm | M3 Thread | Threaded Stud | 0.236 in | 6 mm | 0.315 in | 8 mm |
