BFB0305 Series

Catalog

FAN BLOWER 30X10MM 5VDC WIRE

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [z]	RPM	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Width [y]	Weight	Weight	Fan Type	Air Flow	Air Flow	Noise	Approval Agency	Bearing Type	Static Pressure	Static Pressure	Termination	Features

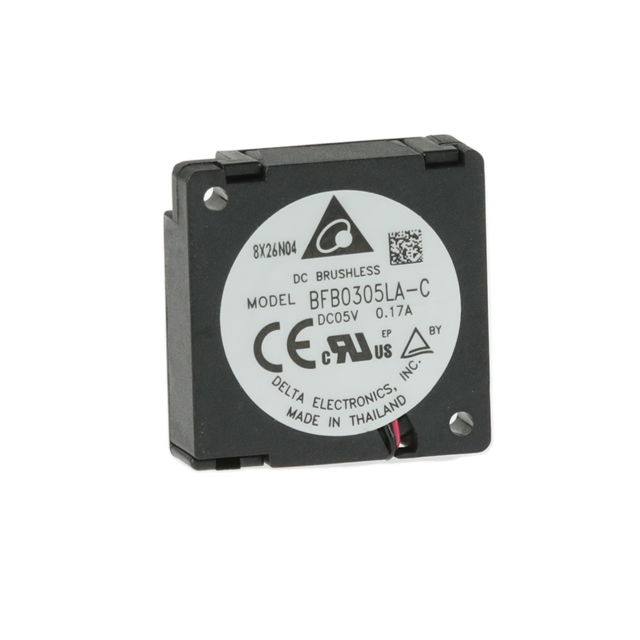

Delta Electronics BFB0305LA-C	Plastic	5.5 V	4.5 V	0.09 A	Plastic	30000 Hrs	30 mm	30 mm	5500 RPM	450 mW	70 °C	-10 °C	5 V	10 mm	10.43 g	0.023 lb	Blower	1.1 CFM	0.031 m³/min	24 dB	CE cURus TUV	Ball	0.144 in H2O	35.9 Pa	2 Wire Leads
Delta Electronics BFB0305HA-C	Plastic	5.5 V	4.5 V		Plastic	30000 Hrs	30 mm	30 mm	7500 RPM	0.65 W	70 °C	-10 °C	5 V	10 mm	10.43 g	0.023 lb	Blower	1.5 CFM	0.042 m³/min	29 dB(A)	CE cURus TUV	Ball	0.285 in H2O	71 Pa	2 Wire Leads

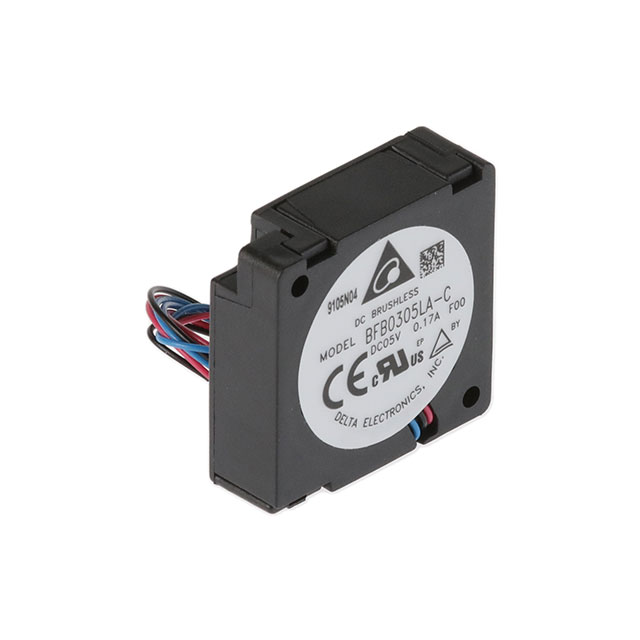

Delta Electronics BFB0305LA-CF00	Plastic	5.5 V	4.5 V	0.09 A	Plastic	30000 Hrs	30 mm	30 mm	5500 RPM	450 mW	70 °C	-10 °C	5 V	10 mm	10.43 g	0.023 lb	Blower	1.1 CFM	0.031 m³/min	24 dB	CE cURus TUV	Ball	0.144 in H2O	35.9 Pa	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)

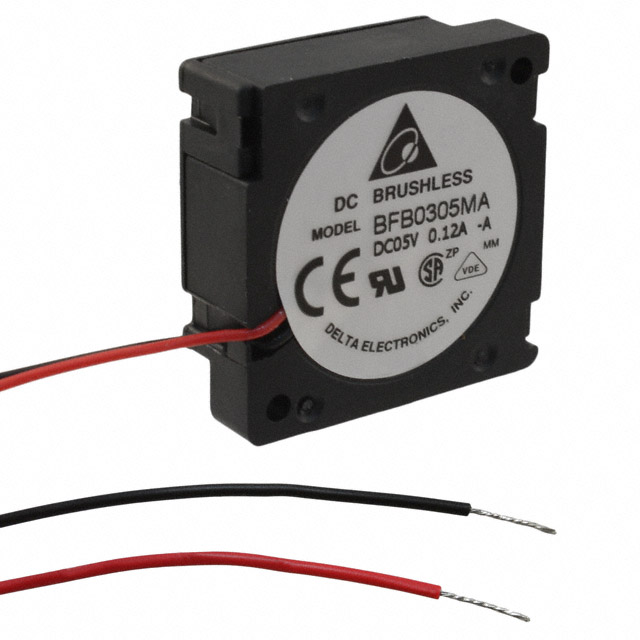

Delta Electronics BFB0305MA-A	Plastic	5.5 V	4 VDC		Plastic	30000 Hrs	30 mm	30 mm	6500 RPM	0.4 W	70 °C	-10 °C	5 V	10 mm	10.43 g	0.023 lb	Blower	1.2 CFM	0.034 m³/min	26 dB	CE CSA UL VDE	Ball	0.206 in H2O	51.3 Pa	2 Wire Leads
Delta Electronics BFB0305MA-CR00	Plastic	5.5 V	4.5 V	120 mA	Plastic	30000 Hrs	30 mm	30 mm	6500 RPM	600 mW	70 °C	-10 °C	5 V	10 mm	10.43 g	0.023 lb	Blower	1.2 CFM	0.034 m³/min	26 dB	CE cURus TUV	Ball	0.206 in H2O	51.3 Pa	3 Wire Leads	Locked Rotor Sensor
