GBC03S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 3POS 2.54MM

Part	Shrouding	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Shape	Style	Insulation Material	Fastening Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Material	Contact Finish - Post	Current Rating (Amps)	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating
Sullins Connector Solutions GBC03SGAN	Unshrouded	3.56 mm	0.14 in	0.1 in	2.54 mm	Square	Board to Board Cable	Nylon 9T Polyamide (PA9T)	Push-Pull	Through Hole Right Angle	2.54 µm	100 µin	All	Phosphor Bronze	Tin	3 A	Male Pin	0.318 "	8.08 mm	Gold	10 çin	0.25 çm	Black	Breakaway Header	-65 ░C	150 °C	Solder	1	2.54 mm	0.1 in	UL94 V-0
Sullins Connector Solutions GBC03SGAN-M71	Unshrouded	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Board to Board Cable	Nylon 9T Polyamide (PA9T)	Push-Pull	Through Hole Right Angle	2.54 µm	100 µin	All	Phosphor Bronze	Tin	3 A	Male Pin	0.318 "	8.08 mm	Gold	10 çin	0.25 çm	Black	Breakaway Header	-65 ░C	150 °C	Solder	1			UL94 V-0	0.12 in	3.05 mm

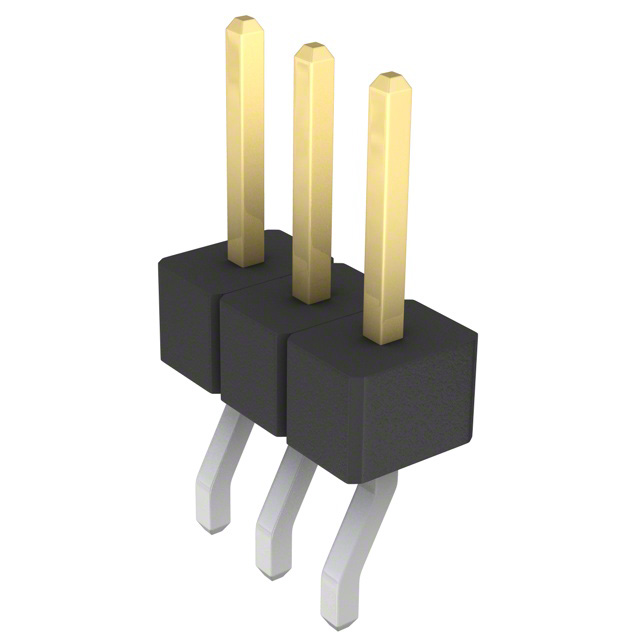

Sullins Connector Solutions GBC03SBSN-M89	Unshrouded	3.56 mm	0.14 in	0.1 in	2.54 mm	Square	Board to Board Cable	Nylon 9T Polyamide (PA9T)	Push-Pull	Surface Mount Right Angle	2.54 µm	100 µin	All	Phosphor Bronze	Tin	3 A	Male Pin	0.23 in		Gold	10 çin	0.25 çm	Black	Breakaway Header	-65 ░C	150 °C	Solder	1			UL94 V-0			5.84 mm

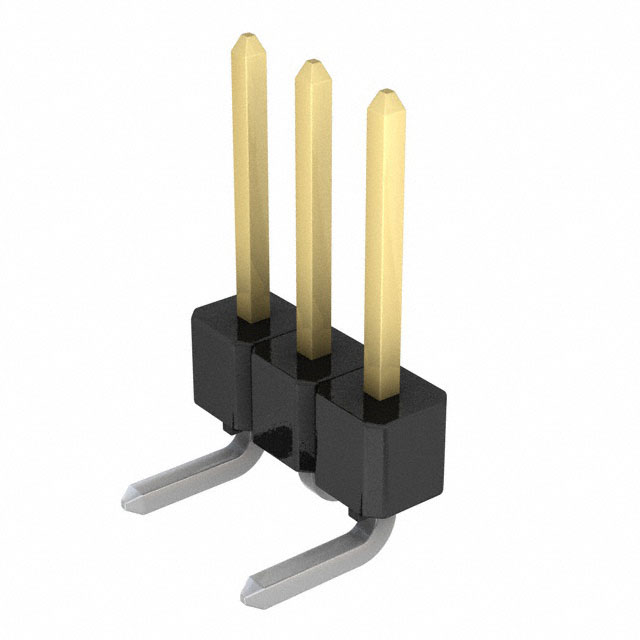

Sullins Connector Solutions GBC03SFBN-M30	Unshrouded	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Board to Board Cable	Nylon 9T Polyamide (PA9T)	Push-Pull	Surface Mount	2.54 µm	100 µin	All	Phosphor Bronze	Tin	3 A	Male Pin	0.318 "	8.08 mm	Gold	10 çin	0.25 çm	Black	Breakaway Header	-65 ░C	150 °C	Solder	1			UL94 V-0

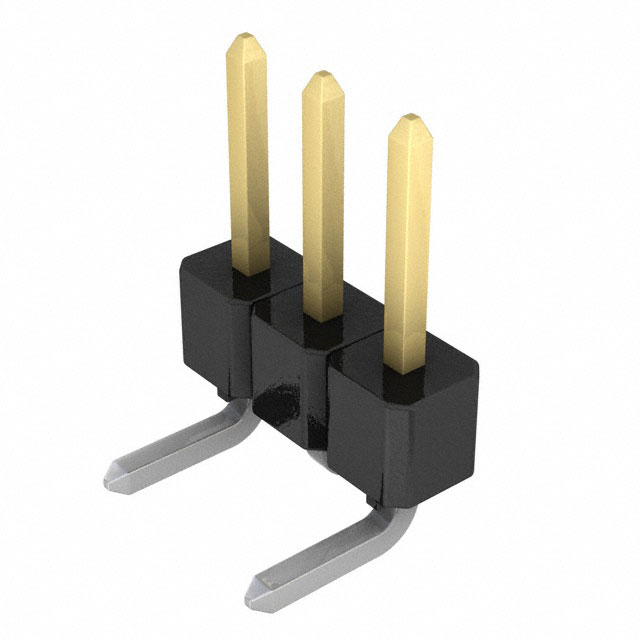

Sullins Connector Solutions GBC03SABN-M30	Unshrouded	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Board to Board Cable	Nylon 9T Polyamide (PA9T)	Push-Pull	Surface Mount	2.54 µm	100 µin	All	Phosphor Bronze	Tin	3 A	Male Pin	0.23 in		Gold	10 çin	0.25 çm	Black	Breakaway Header	-65 ░C	150 °C	Solder	1			UL94 V-0			5.84 mm
