Z-15E Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Features	Termination Style	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Operating Position	Operating Position	Mounting Type	Pretravel	Pretravel	Current Rating (Amps)	Switch Function	Release Force [Max]	Release Force [Min]	Voltage Rating - DC	Electrical Life	Ingress Protection	Operating Force [Min]	Operating Force [Max]	Actuator Type	Differential Travel	Differential Travel	Release Force	Operating Force
Omron Automation and Safety Z-15ER	Reset Function Reset Plunger on Bottom	Solder Lug	300000 Cycles	-25 °C	80 °C	SPDT	0.005 "	0.13 mm	125 V	0.625 in	15.9 mm	Chassis Mount	0.015 "	0.4 mm	15 A	On-On	285 gf	56 gf	30 V	100000 Cycles	IP00	200 gf	255 gf	Round (Pin Plunger)

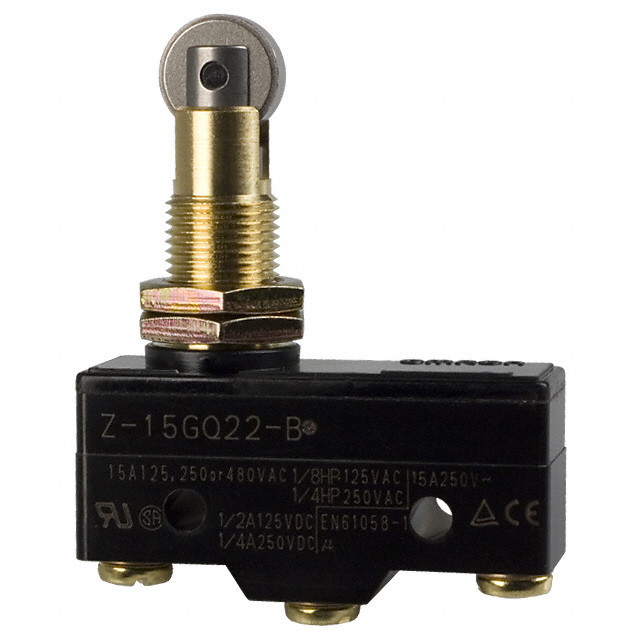

Omron Automation and Safety Z-15EQ22-B		Screw Terminal	300000 Cycles	-25 °C	80 °C	SPDT	0.141 "	3.6 mm	125 V	1.313 in	33.4 mm	Panel Mount	0.03 "	0.8 mm	15 A	On-Mom			30 V	100000 Cycles	IP00	625 gf	800 gf	Roller Plunger	0.005 in	0.13 mm	114 gf

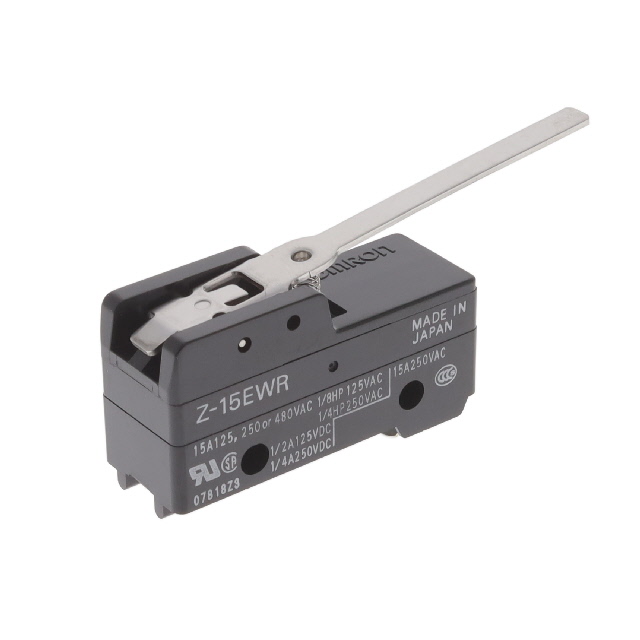

Omron Automation and Safety Z-15EWR	Reset Function Reset Plunger on Bottom	Solder Lug	300000 Cycles	-25 °C	80 °C	SPDT	0.219 "	5.6 mm	125 V	0.748 in	19 mm	Chassis Mount			15 A	On-On			30 V	100000 Cycles	IP00			Lever Straight			300 gf	55 gf

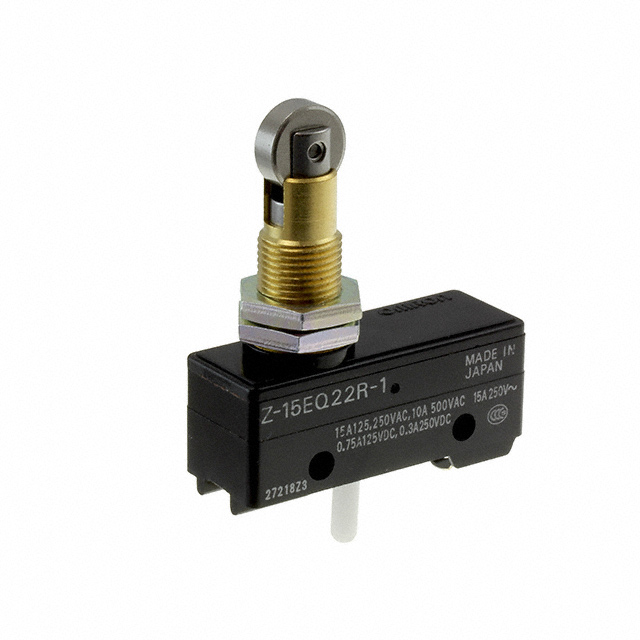

Omron Automation and Safety Z-15EQ22R-1		Solder Lug	300000 Cycles	-25 °C	80 °C	SPDT	0.141 "	3.6 mm	125 V	1.313 in	33.4 mm	Chassis Mount	0.03 "	0.8 mm	6 A 15 A	On-Mom			30 V	100000 Cycles	IP40	625 gf	800 gf	Roller Plunger	0.005 in	0.13 mm	114 gf
Omron Automation and Safety Z-15EW22R		Solder Lug		-25 °C	80 °C	SPDT			125 V			Chassis Mount			15 A	On-Mom			30 V		IP00			Lever Roller
