PL036 Series

Catalog

TEM 30X30X3.2MM

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Features	Voltage - Max [Max]	Qmax @ Th	Resistance	Delta Tmax @ Th	Height [z]	Current - Max [Max]	Height
Marlow Industries, Inc. PL036-4-30-01L	TEC (Thermoelectric Cooler)	30 mm	30 mm	1	Lapped Lead Wires	14.7 V	36 W	3.2 Ohms	66 °C	3.2 mm	3.7 A

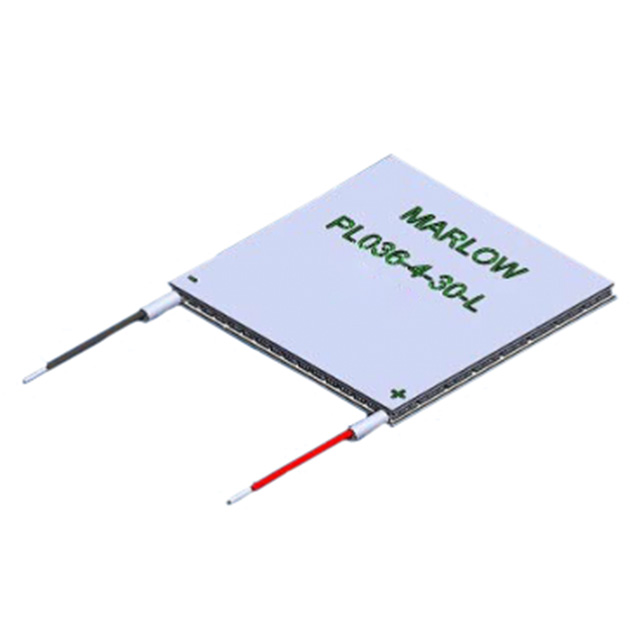

Marlow Industries, Inc. PL036-4-30-01LS	TEC (Thermoelectric Cooler)	30 mm	30 mm	1	Lapped Lead Wires Sealed	14.7 V	36 W	3.2 Ohms	66 °C	3.2 mm	3.7 A
Marlow Industries, Inc. PL036-4-30-01S	TEC (Thermoelectric Cooler)	30 mm	30 mm	1	Lead Wires Sealed	14.7 V	36 W	3.2 Ohms	66 °C	3.46 mm	3.7 A
Marlow Industries, Inc. PL036-4-30-01	TEC (Thermoelectric Cooler)	30 mm	30 mm	1	Lead Wires	14.7 V	36 W	3.2 Ohms	66 °C		3.7 A	3.45 mm
