A41 Series

Power Transformers 50\60 Hz, Laminated Transformer w/ lead wires

Manufacturer: Signal Transformer

Catalog

Power Transformers 50\60 Hz, Laminated Transformer w/ lead wires

Catalog

Power Transformers 50\60 Hz, Laminated Transformer w/ lead wires

Part	Primary Winding(s)	Voltage - Primary	Type	Voltage - Secondary (Full Load) (Series)	Voltage - Secondary (Full Load) (Parallel)	Height - Seated (Max)	Termination Style	Current - Output (Max) Parallel	Current - Output (Max) Series	Mounting Type	Weight	Center Tap	Power - Max	Size / Dimension Width	Size / Dimension Length	Secondary Winding(s)	Voltage - Isolation
Signal Transformer A41-80-28	Dual	115V 230V	Laminated Core	28 V	14 V	76.2 mm	Quick Connect Solder	5.6 A	2.8 A	Chassis Mount	2.8 lbs	No	80 W	64.3 mm	2.5 in	Dual	4000 Vpk

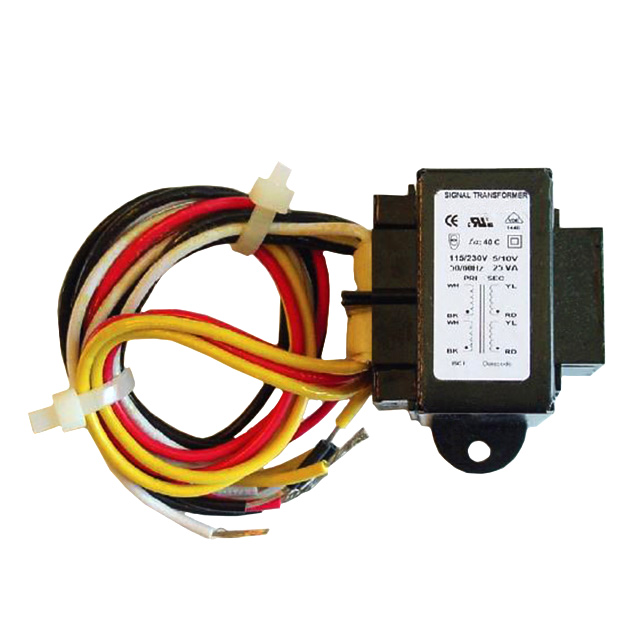

Signal Transformer A41-43-10L	Dual	115V 230V	Laminated Core	10 V	5 V	68.2 mm	Wire Leads	8.6 A	4.3 A	Chassis Mount	1.6 lbs	No	43 VA	54.4 mm	79.4 mm	Dual	4000 Vpk

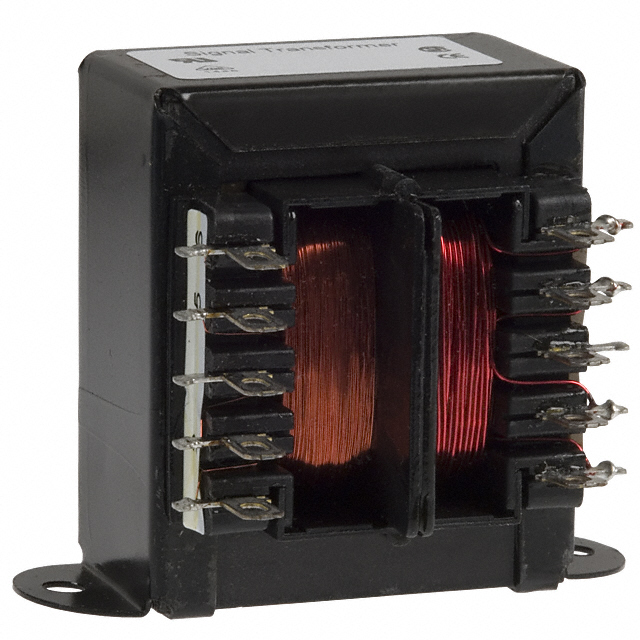

Signal Transformer A41-43-10	Dual	115V 230V	Laminated Core	10 V	5 V	68.2 mm	Quick Connect Solder	8.6 A	4.3 A	Chassis Mount	1.6 lbs	No	43 VA	54.4 mm	79.4 mm	Dual	4000 Vpk

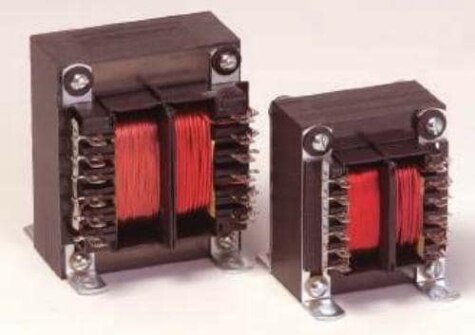

Signal Transformer A41-25-230	Dual	115V 230V	Laminated Core	230 V	115 V	58.7 mm	Quick Connect Solder	220 mA	110 mA	Chassis Mount	1.3 lbs	No	25 W	54.4 mm	71.4 mm	Dual	4000 Vpk
Signal Transformer A41-25-12	Dual	115V 230V	Laminated Core	12.6 V	6.3 V	58.7 mm	Quick Connect Solder	4 A	2 A	Chassis Mount	1.3 lbs	No	25 W	54.4 mm	71.4 mm	Dual	4000 Vpk
Signal Transformer A41-25-515	Dual	115V 230V	Laminated Core	15 V	5 V	58.7 mm	Quick Connect Solder	1.25 A	130 mA	Chassis Mount	1.3 lbs	Yes	25 W	54.4 mm	71.4 mm	Dual	4000 Vpk
Signal Transformer A41-80-28L	Dual	115V 230V	Laminated Core	28 V	14 V	76.2 mm	Wire Leads	5.6 A	2.8 A	Chassis Mount	2.8 lbs	No	80 W	64.3 mm	2.5 in	Dual	4000 Vpk
