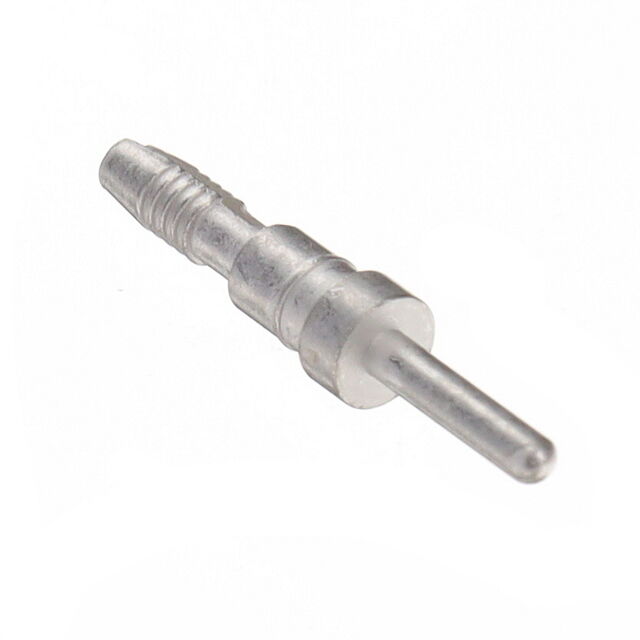

5607-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
PCB PIN PRESS-FIT
| Part | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Insulation | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Terminal Type | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Press-Fit | 1.02 mm | 0.04 in | Tin | 0.045 in | 1.14 mm | 0.03 in | 0.76 mm | Non-Insulated | 9.55 mm | 0.376 in | Brass Alloy | 200 Áin | 5.08 Ám | 5.13 mm | 0.202 in | 0.142 " | 3.6 mm | Through Hole | PC Pin | Wire | 0.072 " | 1.83 mm |
 Mill-Max Manufacturing Corp. | Press-Fit | 1.02 mm | 0.04 in | Gold | 0.045 in | 1.14 mm | 0.03 in | 0.76 mm | Non-Insulated | 9.55 mm | 0.376 in | Brass Alloy | 10 Áin | 0.25 Ám | 5.13 mm | 0.202 in | 0.142 " | 3.6 mm | Through Hole | PC Pin | Wire | 0.072 " | 1.83 mm |
