292138 Series

Catalog

CONN HEADER R/A 26POS 2MM

Part	Insulation Height	Insulation Height	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post [x]	Voltage Rating	Shrouding	Connector Type	Contact Shape	Contact Finish - Post	Number of Positions	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Rows	Current Rating (Amps)	Style	Contact Type	Contact Material	Termination	Number of Positions Loaded	Applications	Mounting Type	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material

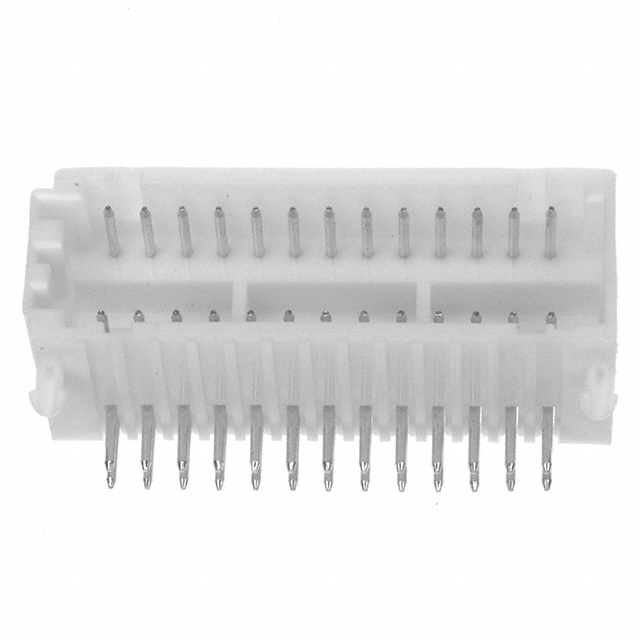

TE Connectivity Raychem Cable Protection 2-292138-6	0.437 in	11.1 mm	Natural	0.079 in	2 mm	3.2 mm	0.126 in	125 VAC	Shrouded - 4 Wall	Header	Circular	Tin	26	0.185 in	4.7 mm	Detent Lock	2	Varies by Wire Gauge	Board to Cable/Wire	Male Pin	Brass	Solder	All	General Purpose	Through Hole Right Angle	UL94 V-0	6.5 mm	0.256 in	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 2-292138-0	0.437 in	11.1 mm	Natural	0.079 in	2 mm	3.2 mm	0.126 in	125 VAC	Shrouded - 4 Wall	Header	Circular	Tin	20	0.185 in	4.7 mm	Detent Lock	2	Varies by Wire Gauge	Board to Cable/Wire	Male Pin	Brass	Solder	All	General Purpose	Through Hole Right Angle	UL94 V-0	6.5 mm	0.256 in	Polyamide (PA66) Nylon 6/6

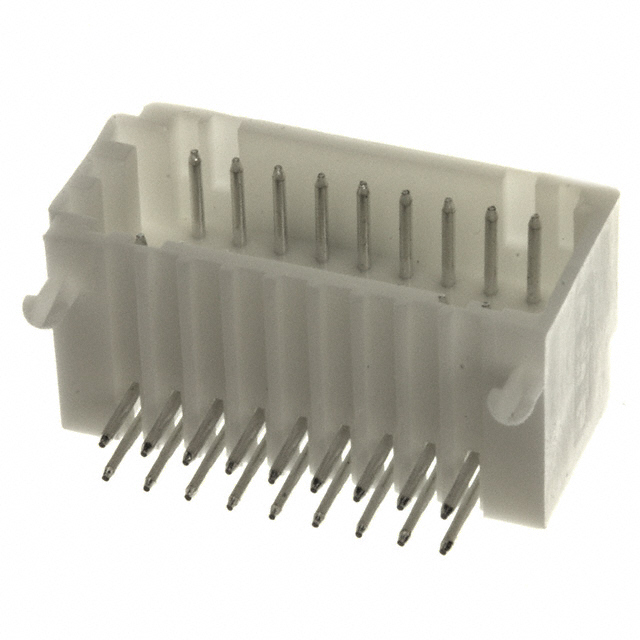

TE Connectivity Raychem Cable Protection 1-292138-8	0.437 in	11.1 mm	Natural	0.079 in	2 mm	3.2 mm	0.126 in	125 VAC	Shrouded - 4 Wall	Header	Circular	Tin	18	0.185 in	4.7 mm	Detent Lock	2	Varies by Wire Gauge	Board to Cable/Wire	Male Pin	Brass	Solder	All	General Purpose	Through Hole Right Angle	UL94 V-0	6.5 mm	0.256 in	Polyamide (PA66) Nylon 6/6
