0558-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Termination
Mill-Max Manufacturing Corp. 0558-0-15-15-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.18 in	4.57 mm	4.57 mm	0.18 in	0.25 Ám	10 Áin	0.061 "	1.55 mm	0.078 "	1.98 mm	No Tail	Solder
Mill-Max Manufacturing Corp. 0558-0-15-01-30-02-10-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Tin-Lead	0.18 in	4.57 mm	4.57 mm	0.18 in	2.54 µm	100 µin	0.061 "	1.55 mm	0.078 "	1.98 mm	No Tail	Solder

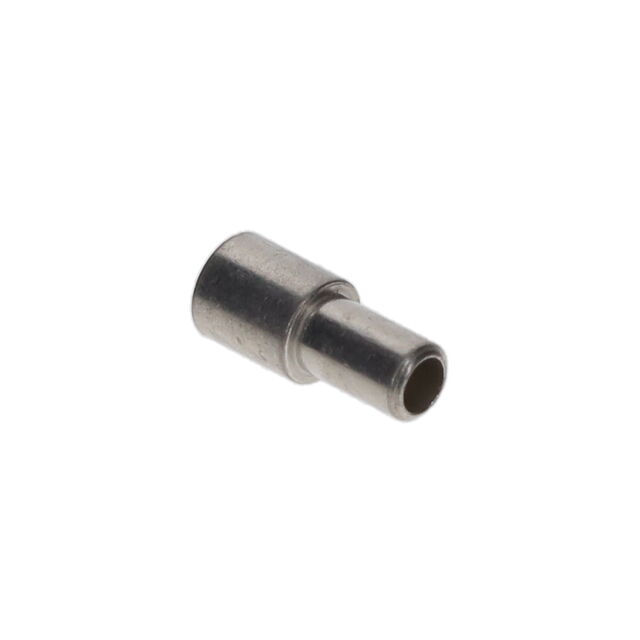

Mill-Max Manufacturing Corp. 0558-0-15-80-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.18 in	4.57 mm	4.57 mm	0.18 in	0.25 Ám	10 Áin	0.061 "	1.55 mm	0.078 "	1.98 mm	No Tail	Solder
