Precision Potentiometers
Precision Potentiometers
| Part | Adjustment Type | Number of Gangs | Tolerance | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Turns | Built in Switch | Resistance (Ohms) [custom] | Rotation | Taper | Actuator Length [x] | Actuator Length [x] | Temperature Coefficient | Termination Style | Mounting Type | Power (Watts) | Actuator Type | Resistive Material | Size - Body [diameter] | Size - Body [diameter] | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

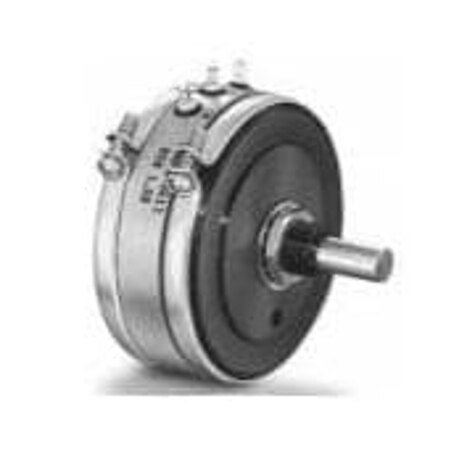

TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | 50 kOhms | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | ||
TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 20 kOhms | ||
TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 5 kOhms | ||
 TT Electronics/BI | User Defined | 2 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 5 kOhms | ||
TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 10k | ||
TT Electronics/BI | User Defined | 2 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 5 kOhms | ||
TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 30k | ||
TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 5 kOhms | ||
TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Round | Wirewound | 2 " | 50.8 mm | 5 kOhms | ||
TT Electronics/BI | User Defined | 1 | 5 % | 6.35 mm | 0.25 in | 1 | None | Continuous | Linear | 15.9 mm | 0.626 in | 20 ppm/°C | Solder Turret | Servo Mount | 3.5 W | Flatted | Wirewound | 2 " | 50.8 mm | 5 kOhms |
