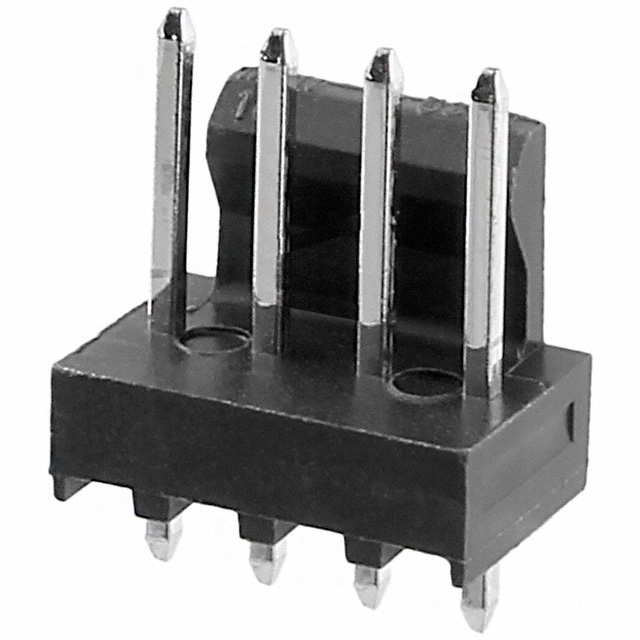

2.54mm Pitch, KK 254 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 14.22mm, Bag, 4 Circuits
2.54mm Pitch, KK 254 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 14.22mm, Bag, 4 Circuits
2.54mm Pitch, KK 254 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 14.22mm, Bag, 4 Circuits
| Part | Current Rating (Amps) | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Shape | Material Flammability Rating | Style | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Shrouding | Contact Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Fastening Type | Termination | Connector Type | Number of Rows | Voltage Rating | Number of Positions Loaded | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Material | Insulation Color | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Number of Positions | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Varies by Wire Gauge | Brass | -40 °C | 80 C | Tin | Square | UL94 V-1 | Board to Board Cable | Gold | 3 µin | 0.076 µm | 0.322 " | 8.18 mm | 2.54 µm | 100 µin | Pick and Place | Shrouded - 1 Wall | Male Pin | 0.293 " | 7.44 mm | Friction Lock | Solder | Header | 1 | 500 VAC 600 V | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | ||||
 Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | Gold | 15 µin | 0.38 µm | 0.322 " | 8.18 mm | 2.54 µm | 100 µin | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 12 | Automotive General Purpose Medical Telecommunications | |||||||
 Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | 60 Áin | 1.52 Ám | 0.322 " | 8.18 mm | 1.52 µm | 60 µin | Pick and Place | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 2 | Automotive General Purpose Medical Telecommunications | |||||||
 Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | 60 Áin | 1.52 Ám | 0.322 " | 8.18 mm | 1.52 µm | 60 µin | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | Automotive General Purpose Medical Telecommunications | |||||||||
 Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | Gold | 15 µin | 0.38 µm | 0.322 " | 8.18 mm | 2.54 µm | 100 µin | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 7 | Automotive General Purpose Medical Telecommunications | |||||||
 Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | 60 Áin | 1.52 Ám | 0.322 " | 8.18 mm | 1.52 µm | 60 µin | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 11 | Automotive General Purpose Medical Telecommunications | ||||||||
 Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | 60 Áin | 1.52 Ám | 0.322 " | 8.18 mm | 1.52 µm | 60 µin | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 12 | Automotive General Purpose Medical Telecommunications | ||||||||
 Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | 60 Áin | 1.52 Ám | 0.322 " | 8.18 mm | 1.52 µm | 60 µin | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 4 | Automotive General Purpose Medical Telecommunications | ||||||||
Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | Gold | 15 µin | 0.38 µm | 0.322 " | 8.18 mm | 2.54 µm | 100 µin | Pick and Place | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 8 | Automotive General Purpose Medical Telecommunications | ||||||
Molex | Brass | Tin | Square | UL94 V-2 | Board to Board Cable | Gold | 15 µin | 0.38 µm | 0.322 " | 8.18 mm | 2.54 µm | 100 µin | Pick and Place | Shrouded - 1 Wall | Male Pin | Friction Lock | Solder | Header | 1 | All | Through Hole | 0.1 in | 2.54 mm | Nylon Polyamide (PA) | Black | 2.34 mm | 0.092 in | 7.45 mm | 0.293 in | 10 | Automotive General Purpose Medical Telecommunications |
