XZFMYK14 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7SEG 0.56" DBL YLW 20SMD
| Part | Power Dissipation (Max) [Max] | Millicandela Rating | Current - Test | Common Pin | Display Type | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Color | Number of Characters | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

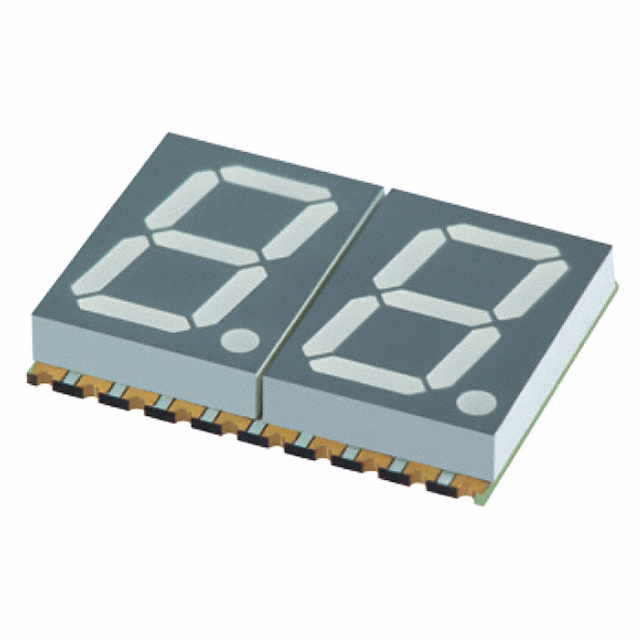

 SunLED | 75 mw | 29 mcd | 10 mA | Common Anode | 7-Segment | 20-SMD No Lead | 25.1 mm | 0.988 " | 0.148 in | 3.75 mm | 17 mm | 0.669 in | 2 | 0.56 in | 14.22 mm | 590 nm | 1.95 V | Yellow | |||

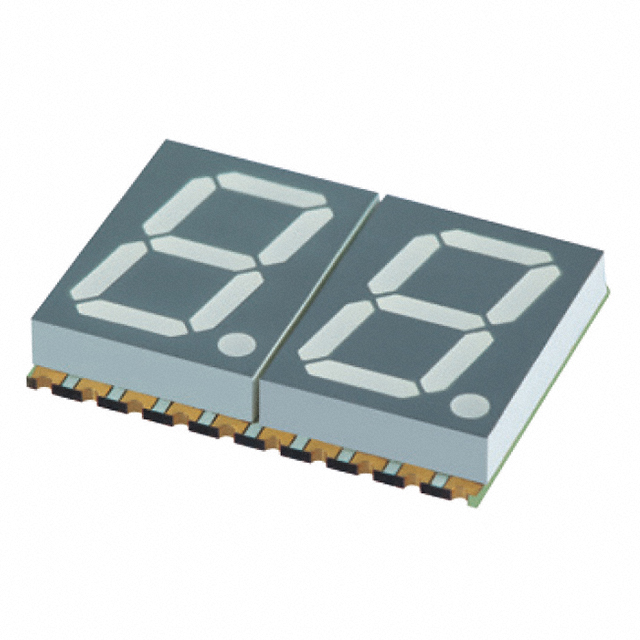

 SunLED | 75 mw | 29 mcd | 10 mA | Common Cathode | 7-Segment | 20-SMD No Lead | 25.1 mm | 0.988 " | 0.148 in | 3.75 mm | 17 mm | 0.669 in | 2 | 0.56 in | 14.22 mm | 590 nm | 1.95 V | Yellow | |||

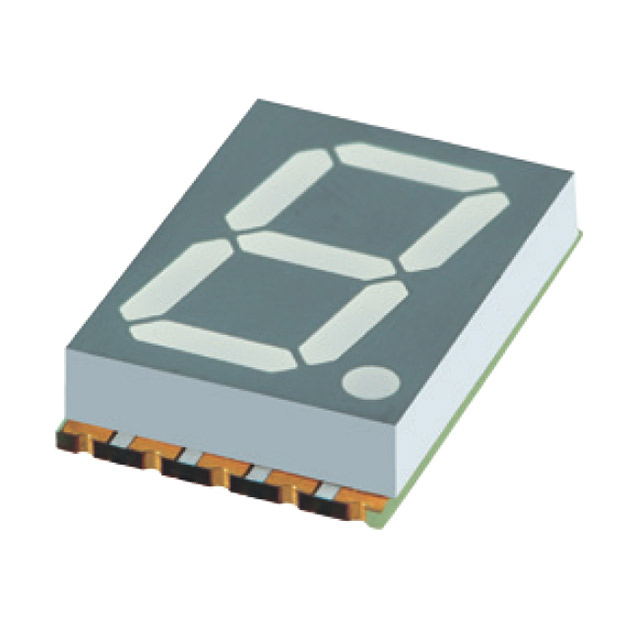

 SunLED | 75 mw | 76 mcd | 10 mA | Common Anode | 7-Segment | 10-SMD No Lead | 0.488 " | 0.148 in | 19 mm | 0.748 in | 0.56 in | 14.22 mm | 590 nm | 1.95 V | Yellow | 1 | 12.4 mm | 3.75 mm |
