CC1070 Series

Single-chip, Low-Power, Low-Cost CMOS FSK/GFSK/ASK/00K RF Transmitter for Narrowband & Multi-Ch apps

Catalog

Single-chip, Low-Power, Low-Cost CMOS FSK/GFSK/ASK/00K RF Transmitter for Narrowband & Multi-Ch apps

Part	Current - Transmitting	Data Rate (Max)	Modulation or Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output [Max]	Power - Output [Min]	Frequency [Min]	Frequency [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Supplier Device Package	Applications	Data Interface	Package / Case	Antenna Connector
Texas Instruments CC1070-RTY1	33.1 mA	153.6 kBaud	ASK FSK GFSK OOK	2.3 V	3.6 V	10 dBm	-20 dBm	402 MHz 804 MHz	470 MHz 940 MHz	-40 °C	105 ░C	Surface Mount	20-QFN (5x5)	ISM	PCB Surface Mount	20-QFN Exposed Pad	PCB Surface Mount
Texas Instruments CC1070RGWR	33.1 mA	153.6 kBaud	ASK FSK GFSK OOK	2.3 V	3.6 V	10 dBm	-20 dBm	402 MHz 804 MHz	470 MHz 940 MHz	-40 °C	105 ░C	Surface Mount	20-VQFN (5x5)	ISM	PCB Surface Mount	20-VQFN Exposed Pad	PCB Surface Mount
Texas Instruments CC1070RGWT	33.1 mA	153.6 kBaud	ASK FSK GFSK OOK	2.3 V	3.6 V	10 dBm	-20 dBm	402 MHz 804 MHz	470 MHz 940 MHz	-40 °C	105 ░C	Surface Mount	20-VQFN (5x5)	ISM	PCB Surface Mount	20-VQFN Exposed Pad	PCB Surface Mount
Texas Instruments CC1070RSQ	33.1 mA	153.6 kBaud	ASK FSK GFSK OOK	2.3 V	3.6 V	10 dBm	-20 dBm	402 MHz 804 MHz	470 MHz 940 MHz	-40 °C	105 ░C	Surface Mount	20-QFN (5x5)	ISM	PCB Surface Mount	20-QFN Exposed Pad	PCB Surface Mount
Texas Instruments CC1070RSQR	33.1 mA	153.6 kBaud	ASK FSK GFSK OOK	2.3 V	3.6 V	10 dBm	-20 dBm	402 MHz 804 MHz	470 MHz 940 MHz	-40 °C	105 ░C	Surface Mount	20-QFN (5x5)	ISM	PCB Surface Mount	20-QFN Exposed Pad	PCB Surface Mount
Texas Instruments CC1070-RTR1	33.1 mA	153.6 kBaud	ASK FSK GFSK OOK	2.3 V	3.6 V	10 dBm	-20 dBm	402 MHz 804 MHz	470 MHz 940 MHz	-40 °C	105 ░C	Surface Mount	20-QFN (5x5)	ISM	PCB Surface Mount	20-QFN Exposed Pad	PCB Surface Mount

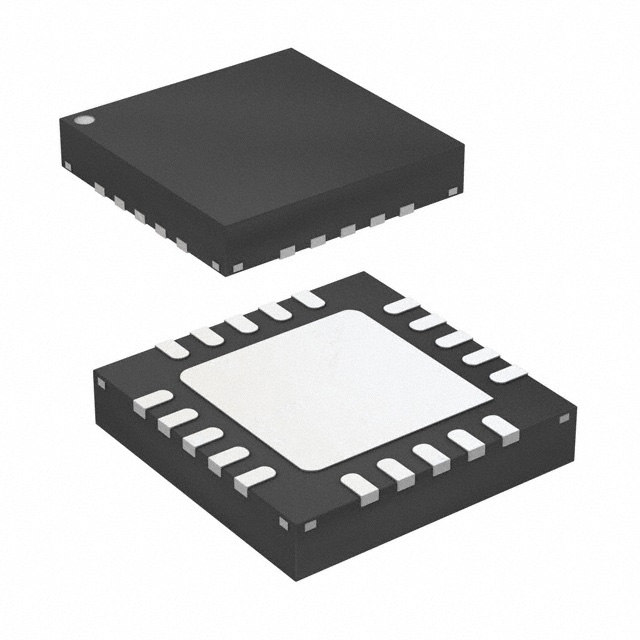

Texas Instruments CC1070RGP	33.1 mA	153.6 kBaud	ASK FSK GFSK OOK	2.3 V	3.6 V	10 dBm	-20 dBm	402 MHz 804 MHz	470 MHz 940 MHz	-40 °C	105 ░C	Surface Mount	20-QFN (4x4)	ISM	PCB Surface Mount	20-VFQFN Exposed Pad	PCB Surface Mount

Catalog

Single-chip, Low-Power, Low-Cost CMOS FSK/GFSK/ASK/00K RF Transmitter for Narrowband & Multi-Ch apps

Key Features

• True single chip UHF RF transmitterFrequency range 402 - 470 MHz and 804 - 940 MHzProgrammable output powerLow supply voltage (2.3 to 3.6 V)Very few external components requiredSmall size (QFN 20 package)Pb-free packageData rate up to 153.6 kBaudOOK, FSK and GFSK data modulationFully on-chip VCOProgrammable frequency makes crystal temperature drift compensationpossible without TCXOSuitable for frequency hopping systemsSuited for systems targeting compliance with EN 300 220, FCCCFR47 part 15 and ARIB STD T-67Development kit availableEasy-to-use software for generating theCC1070configuration dataApplicationsNarrowband low power UHF wireless data transmitters402 / 424 / 426 / 429 / 433 / 447 / 449 / 469 / 868and 915 MHz ISM/SRD band systemsTPMS – Tire Pressure Monitoring SystemsAMR – Automatic Meter ReadingWireless alarm and security systemsHome automationLow power telemetryTrue single chip UHF RF transmitterFrequency range 402 - 470 MHz and 804 - 940 MHzProgrammable output powerLow supply voltage (2.3 to 3.6 V)Very few external components requiredSmall size (QFN 20 package)Pb-free packageData rate up to 153.6 kBaudOOK, FSK and GFSK data modulationFully on-chip VCOProgrammable frequency makes crystal temperature drift compensationpossible without TCXOSuitable for frequency hopping systemsSuited for systems targeting compliance with EN 300 220, FCCCFR47 part 15 and ARIB STD T-67Development kit availableEasy-to-use software for generating theCC1070configuration dataApplicationsNarrowband low power UHF wireless data transmitters402 / 424 / 426 / 429 / 433 / 447 / 449 / 469 / 868and 915 MHz ISM/SRD band systemsTPMS – Tire Pressure Monitoring SystemsAMR – Automatic Meter ReadingWireless alarm and security systemsHome automationLow power telemetry

Description

CC1070is a true single-chip UHF transmitter designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 - 470 and 804 - 940 MHz range. TheCC1070is especially suited for narrowband systems with channel spacings of 12.5 or 25 kHz complying with ARIB STD T-67 and EN 300 220. TheCC1070main operating parameters can be programmed via a serial bus, thus makingCC1070a very flexible and easy to use transmitter. In a typical applicationCC1070will be used together with a microcontroller and a few external passive components. CC1070is a true single-chip UHF transmitter designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 - 470 and 804 - 940 MHz range. TheCC1070is especially suited for narrowband systems with channel spacings of 12.5 or 25 kHz complying with ARIB STD T-67 and EN 300 220. TheCC1070main operating parameters can be programmed via a serial bus, thus makingCC1070a very flexible and easy to use transmitter. In a typical applicationCC1070will be used together with a microcontroller and a few external passive components.
