S9S12 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
IC MCU 16BIT 32KB FLASH 32LQFP
| Part | Core Processor | Program Memory Type | Peripherals | Core Size | Data Converters | RAM Size | Package / Case | Mounting Type | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Connectivity | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | EEPROM Size | Oscillator Type | Number of I/O | Speed | Data Converters [custom] | Data Converters [custom] | RAM Size | Data Converters | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | A/D 2x10b | 2K x 8 | 32-LQFP | Surface Mount | 32 KB | 5.5 V | 3.13 V | IrDA LINbus SCI SPI | 32-LQFP (7x7) | 105 °C | -40 °C | 128 x 8 | Internal | 16 | 25 MHz | |||||
 Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | 64-LQFP | Surface Mount | 192 KB | 5.5 V | 3.13 V | CANbus IrDA LINbus SCI SPI | 64-LQFP (10x10) | 85 °C | -40 °C | 4K x 8 | Internal | 54 | 25 MHz | 8 12 | 2 16 | 11 K | ||||
Freescale Semiconductor - NXP | HCS12 | FLASH | LVD POR PWM WDT | 16-Bit | 4K x 8 | 64-LQFP | Surface Mount | 64 KB | 5.5 V | 1.72 V | CANbus SCI SPI | 64-LQFP (10x10) | 105 °C | -40 °C | 4K x 8 | Internal | 49 | 32 MHz | ||||||
 Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | 100-LQFP | Surface Mount | 128 KB | 5.5 V | 3.13 V | CANbus IrDA LINbus SCI SPI | 100-LQFP (14x14) | 105 °C | -40 °C | 4K x 8 | Internal | 86 | 25 MHz | 8 K | 10 b 12 | |||||
 Freescale Semiconductor - NXP | S12Z | FLASH | LVD POR PWM WDT | 16-Bit | 32-LQFP | Surface Mount | 32 KB | 18 V | 5.5 V | I2C IrDA LINbus SCI SPI UART/USART | 32-LQFP (7x7) | 105 °C | -40 °C | 128 x 8 | Internal | 19 | 32 MHz | 10 b | 6 | 1 K | ||||
Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | 64-LQFP | Surface Mount | 128 KB | 5.5 V | 3.13 V | CANbus IrDA LINbus SCI SPI | 64-LQFP (10x10) | 125 °C | -40 °C | 4K x 8 | Internal | 54 | 25 MHz | 8 K | 10 b 12 | |||||

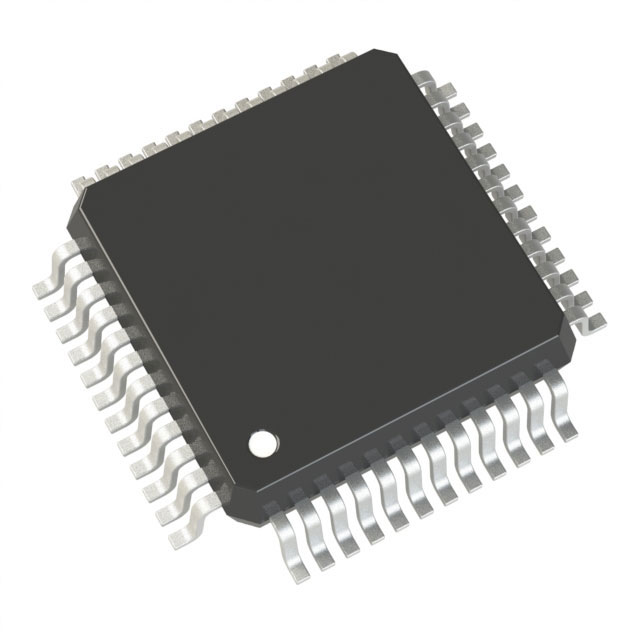

 Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | 48-LQFP | Surface Mount | 16 KB | 5.5 V | 3.13 V | IrDA LINbus SCI SPI | 48-LQFP (7x7) | 125 °C | -40 °C | 512 x 8 | Internal | 40 | 25 MHz | 8 | 1 K | 12 b | ||||
Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | 48-LQFP | Surface Mount | 128 KB | 5.5 V | 3.13 V | CANbus IrDA LINbus SCI SPI | 48-LQFP (7x7) | 85 °C | -40 °C | 4K x 8 | Internal | 40 | 25 MHz | 8 K | 10 b 12 | |||||
Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | A/D 2x10b | 2K x 8 | 32-LQFP | Surface Mount | 64 KB | 5.5 V | 3.13 V | IrDA LINbus SCI SPI | 32-LQFP (7x7) | 105 °C | -40 °C | 512 x 8 | Internal | 16 | 25 MHz | |||||
Freescale Semiconductor - NXP | 12V1 | FLASH | LVD POR PWM WDT | 16-Bit | 48-LQFP | Surface Mount | 16 KB | 5.5 V | 3.13 V | IrDA LINbus SCI SPI | 48-LQFP (7x7) | 105 ░C | -40 °C | 512 x 8 | Internal | 40 | 25 MHz | 8 | 1 K | 10 |
