3312 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN FERRULE FOR F PLUG
| Part | For Use With/Related Products | Connector Style | Body Finish | Accessory Type | Color | Insulation | Terminal Style | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Terminal Type | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Features | Length - Overall [x] | Length - Overall [x] | Termination | Mounting Type | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | F Type Plugs | F | Tin | Ferrule | Silver | |||||||||||||||||||

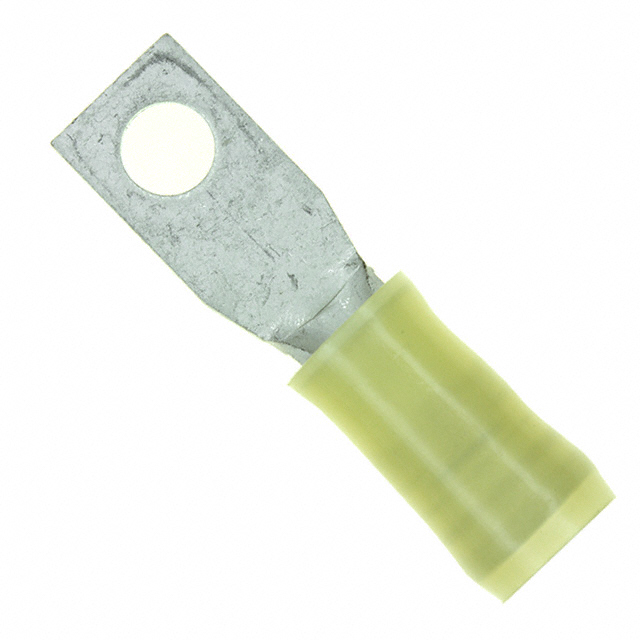

 TE Connectivity Raychem Cable Protection | Yellow | Insulated | Single Stud Hole | 4.34 mm | 0.171 in | Rectangular Tongue | 8 Stud | 7.67 mm | 0.302 in | Serrated Termination | 1.247 in | 31.67 mm | Crimp | Free Hanging (In-Line) | 1.02 mm | 0.04 in | 12 AWG | 10 AWG | Tin | Copper |
