E Series

Catalog

BASIC / SNAP ACTION SWITCHES 15A 125/250VAC, DPDT, BUTTON WITH FERRULE

Part	Switch Function	Pretravel	Pretravel	Differential Travel	Differential Travel	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Mounting Type	Operating Position	Operating Position	Voltage Rating - AC	Termination Style	Electrical Life	Circuit	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Voltage Rating - DC	Differential Travel	Operating Position [x]	Operating Position [x]

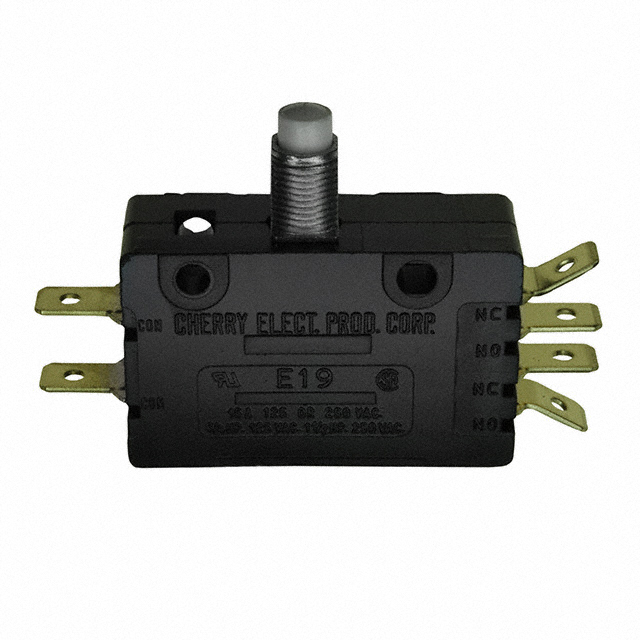

ZF Electronics E19-00J	On-Mom	0.05 in	1.27 mm	0.015 in	0.38 mm	Overtravel Plunger	-40 C	105 ░C	850 gf	Panel Mount	0.67 in	17 mm	125 V	Quick Connect - 0.250" (6.3mm)	6000 Cycles	DPDT	0.079 "	2 mm	15 A
ZF Electronics E14-00H	On-Mom	0.31 "	7.9 mm	0.05 in	1.3 mm	Lever Straight	-40 C	105 ░C	285 gf	Chassis Mount	0.468 in	11.9 mm	125 V	Quick Connect - 0.250" (6.3mm)	6000 Cycles	SPDT	0.105 "	2.67 mm	2 A 25 A	48 V
ZF Electronics E19-50H	On-Mom	0.4 in	10.1 mm	3.55 mm		Lever Straight	-40 C	105 ░C	130 gf	Chassis Mount			125 V	Quick Connect - 0.250" (6.3mm)	6000 Cycles	DPDT	0.187 "	4.75 mm	15 A		0.14 in	0.28 in	7.1 mm

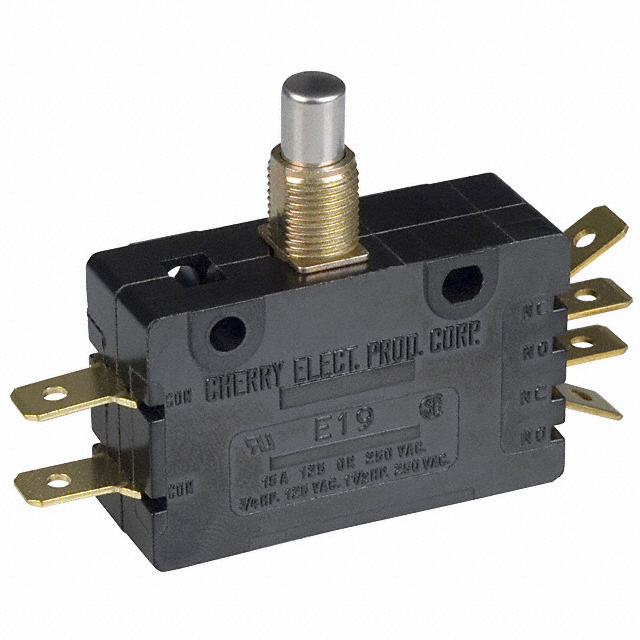

ZF Electronics E19-00M	On-Mom	0.05 in	1.27 mm	0.015 in	0.38 mm	Overtravel Plunger	-40 C	105 ░C	850 gf	Panel Mount	0.812 in	20.6 mm	125 V	Quick Connect - 0.250" (6.3mm)	6000 Cycles	DPDT	0.219 "	5.6 mm	15 A
