SRR1206 Series

Catalog

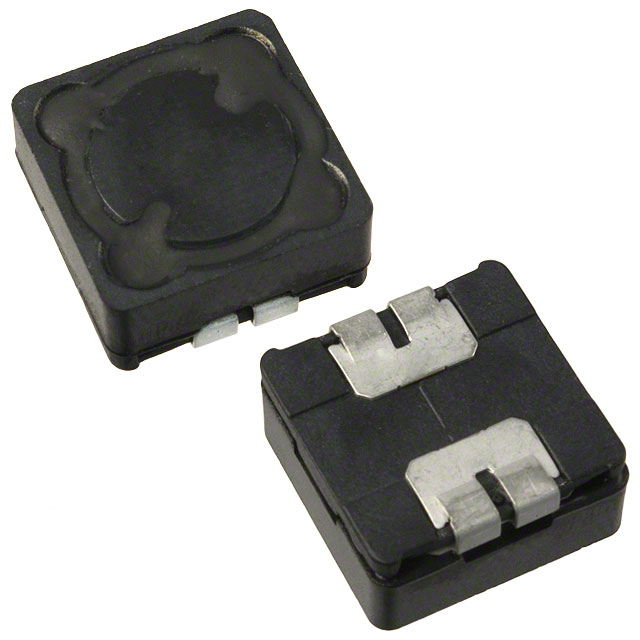

SURFACE MOUNT POWER INDUCTOR, SRR1206 SERIES, 68 H, 15%, SHIELDED, 0.17 OHM, 1.3 A ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Type	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Tolerance	Material - Core	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Q @ Freq	Current Rating (Amps)	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. SRR1206-680YL	125 °C	-40 C	68 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	15 %	Ferrite	2.2 A	170 mOhm	1 kHz	6.5 mm	0.256 in	7 MHz	2.52 MHz 18	1.3 A	Shielded
Bourns Inc. SRR1206-681KL	125 °C	-40 C	680 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	10 %	Ferrite	700 mA	1.5 Ohm	1 kHz	6.5 mm	0.256 in	2 MHz	11 796 kHz	400 mA	Shielded
Bourns Inc. SRR1206-100ML	125 °C	-40 C	10 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	20 %	Ferrite	5.7 A	35 mOhm	1 kHz	6.5 mm	0.256 in	18 MHz	2.52 MHz 18	3.3 A	Shielded
Bourns Inc. SRR1206-2R5ML	125 °C	-40 C	2.5 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	20 %	Ferrite	10 A	16 mOhm	1 kHz	6.5 mm	0.256 in	30 MHz		6.2 Amps	Shielded	19	7.96 MHz
Bourns Inc. SRR1206-390YL	125 °C	-40 C	39 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	15 %	Ferrite	3 A		1 kHz	6.5 mm	0.256 in	9 MHz	2.52 MHz 23	1.75 A	Shielded			100 mOhm
Bourns Inc. SRR1206-271KL	125 °C	-40 C	270 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	10 %	Ferrite	1.1 A	520 mOhm	1 kHz	6.5 mm	0.256 in	3.5 MHz	11 796 kHz	650 mA	Shielded
Bourns Inc. SRR1206-330YL	125 °C	-40 C	33 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	15 %	Ferrite	3.1 A	90 mOhm	1 kHz	6.5 mm	0.256 in	9 MHz	2.52 MHz 21	1.9 A	Shielded
Bourns Inc. SRR1206-470YL	125 °C	-40 C	47 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	15 %	Ferrite	2.5 A		1 kHz	6.5 mm	0.256 in	7 MHz	22	1.6 A	Shielded			130 mOhm
Bourns Inc. SRR1206-331KL	125 °C	-40 C	330 µH	Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	10 %	Ferrite	1 A	660 mOhm	1 kHz	6.5 mm	0.256 in	3 MHz	11 796 kHz	600 mA	Shielded
Bourns Inc. SRR1206-121YL	125 °C	-40 C		Drum Core Wirewound	12.7 mm	12.7 mm	Surface Mount	Nonstandard	15 %	Ferrite	1.8 A		1 kHz	6.5 mm	0.256 in	5 MHz	13 796 kHz	1 A	Shielded			260 mOhm
