114-83 Series

Manufacturer: Preci-Dip

Catalog

CONN IC DIP SOCKET 48POS GOLD

Part	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Resistance	Contact Finish - Mating	Termination	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Pitch - Post	Pitch - Post	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Material - Post [custom]	Mounting Type	Contact Material - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Housing Material	Pitch - Mating	Pitch - Mating	Type [custom]	Type [custom]	Type	Type	Type	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

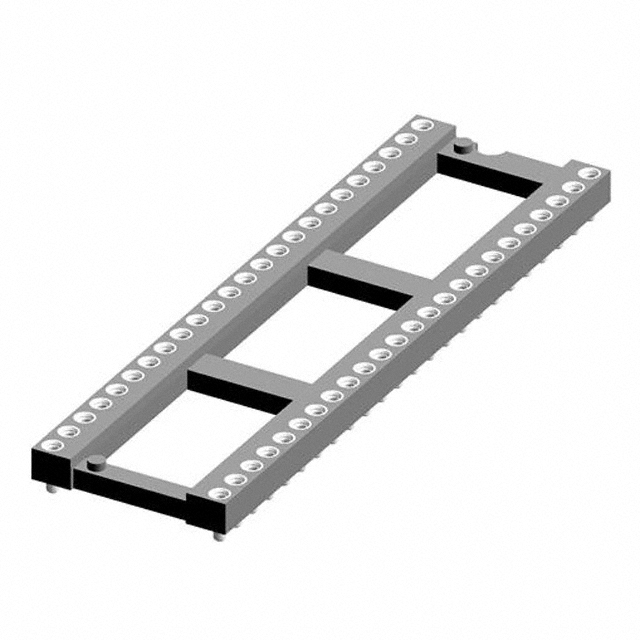

Preci-Dip 114-83-648-41-117101	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder	2	48	24	0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	15.24 mm	0.6 in	DIP
Preci-Dip 114-83-324-41-134161	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder	2		12	0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm			DIP	7.62 mm	0.3 in	24
Preci-Dip 114-83-640-41-134161	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder				0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	15.24 mm	0.6 in	DIP			40

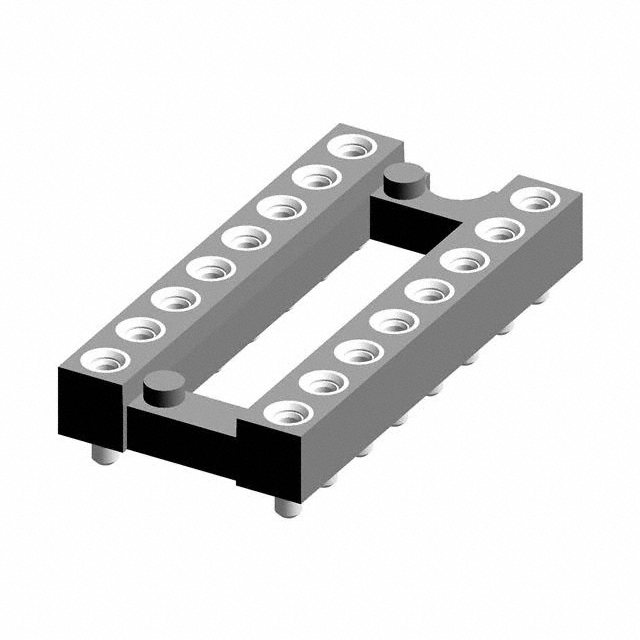

Preci-Dip 114-83-316-41-117101	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder				0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm			DIP	7.62 mm	0.3 in	16	2	8
Preci-Dip 114-83-328-41-134161	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder				0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm			DIP	7.62 mm	0.3 in	28
Preci-Dip 114-83-324-41-117101	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder	2		12	0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm			DIP	7.62 mm	0.3 in	24
Preci-Dip 114-83-624-41-134161	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder	2		12	0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	15.24 mm	0.6 in	DIP			24
Preci-Dip 114-83-306-41-134191	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder	3 positions or pins		2	0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm			DIP	7.62 mm	0.3 in	6

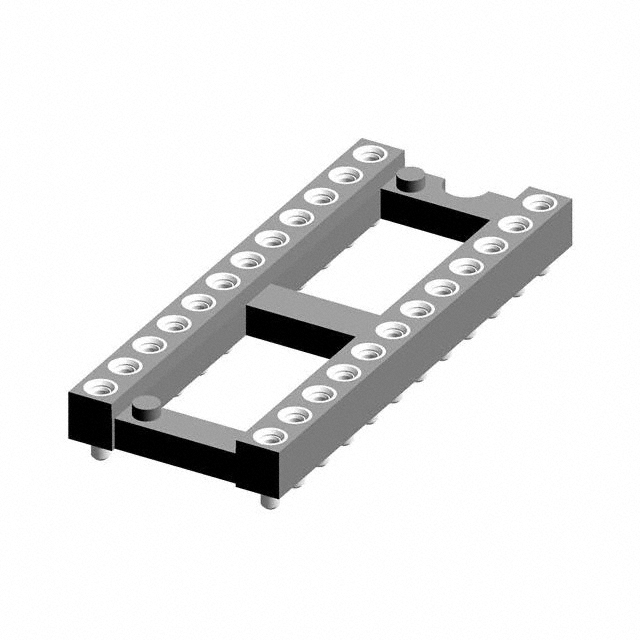

Preci-Dip 114-83-424-41-117101	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder	2		12	0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm			DIP		0.4 in	24

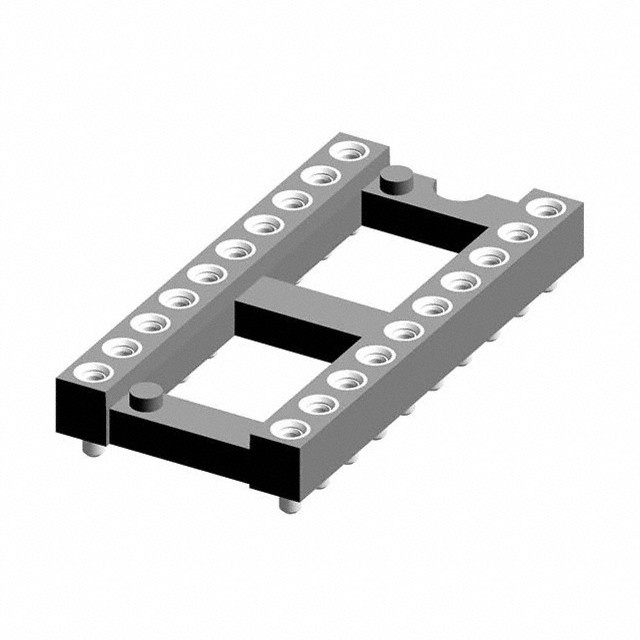

Preci-Dip 114-83-420-41-117101	UL94 V-0	0.047 in	1.2 mm	1 A	10 mOhm	Gold	Solder				0.1 in	2.54 mm	Open Frame	-55 C	125 °C	Tin	Brass	Surface Mount	Beryllium Copper	29.5 µin	0.75 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm			DIP		0.4 in	20
